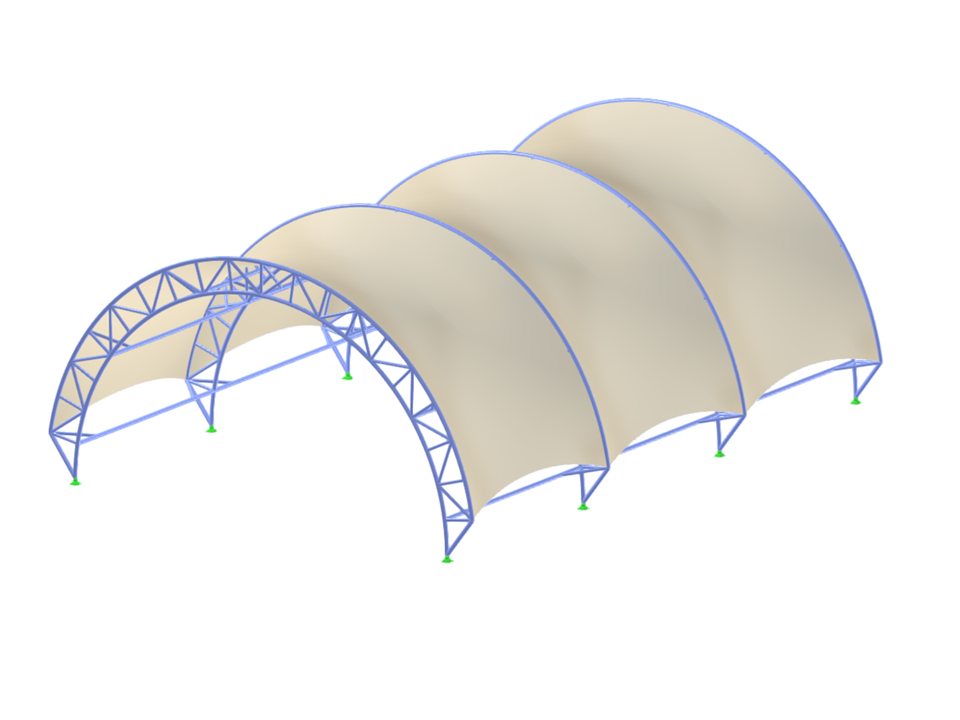

This model presents the application of advanced form-finding methods in the context of lightweight tensile membrane structures, taking wind loads into account. The integration of RFEM software allows for detailed simulation of dynamic loads and optimizes the calculation process for nonlinear stress effects. Precise numerical approaches illustrate the behavior of complex membrane structures. The analysis is ideal for understanding and applying modern calculation techniques.
Tensile Membrane Structure
| Number of Nodes | 202 |
| Number of Lines | 377 |
| Number of Members | 377 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 18,316 t |
| Dimensions (Metric) | 22,717 x 11,500 x 30,000 m |
| Dimensions (Imperial) | 74.53 x 37.73 x 98.43 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
