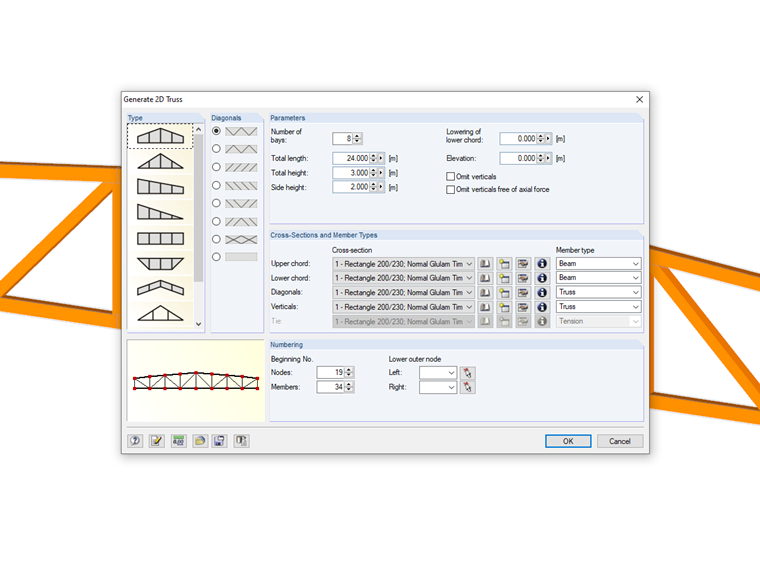

In RFEM and RSTAB, truss girders can be quickly and efficiently modeled, calculated, and designed according to various standards. For such models, we recommend using the model generator for a 2D truss (see the image). After entering the cross-section parameters and the geometry details, the model is created automatically by the model generator.
Mr. Baumgärtel provides technical support for Dlubal Software customers.
