Concrete T-Beam with Tendon Reinforcement and Slab Integration

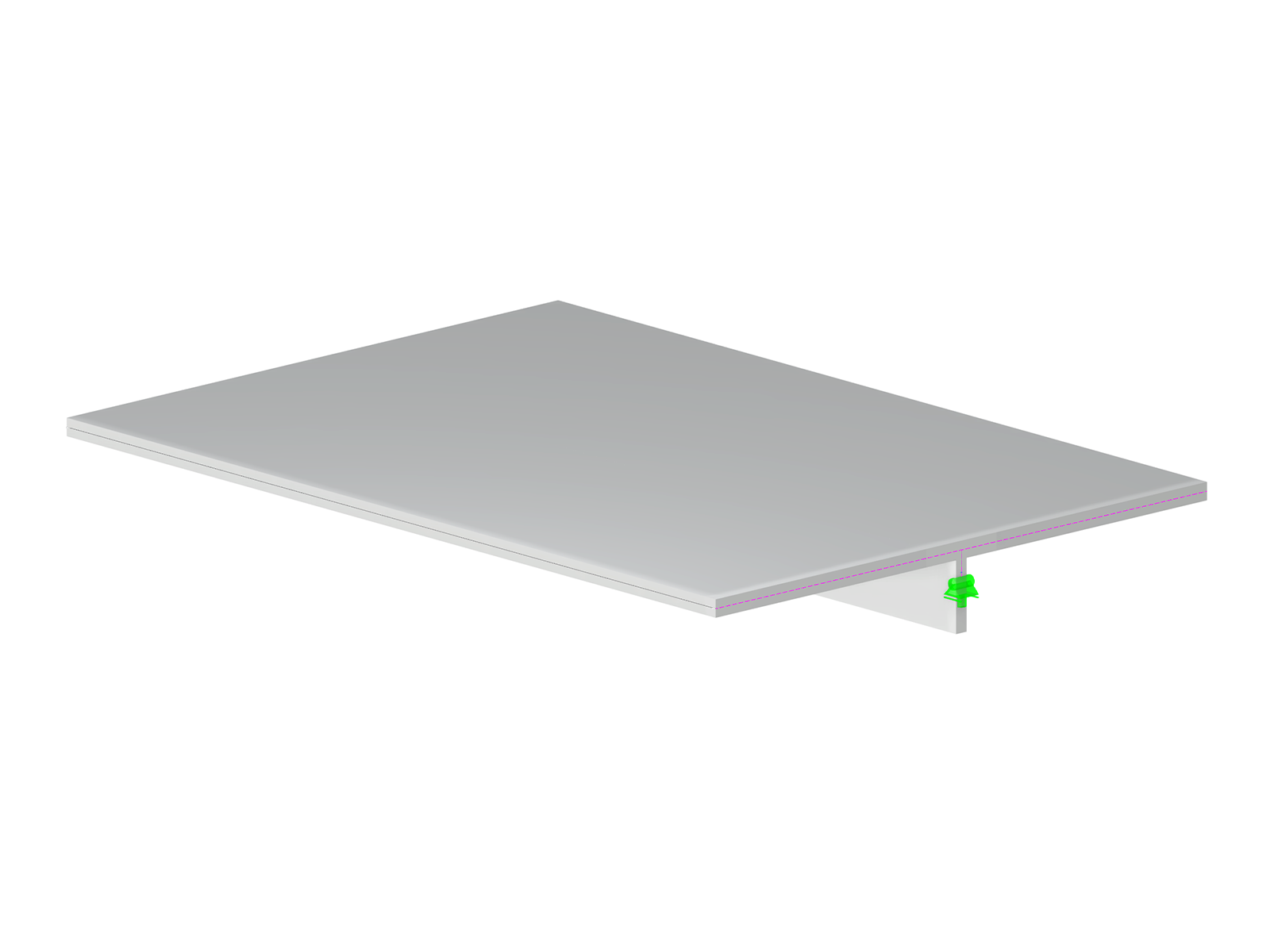

Detailed view of a concrete T-beam with tendon reinforcement and integrated slab modeled for analysis.
The image depicts a structural analysis model of a concrete T-beam, which includes tendon reinforcement and slab integration. The tendons are strategically placed to enhance the tensile strength of the beam.
Used in
3D Model
Specifications
| Number of Nodes | 16 |
| Number of Lines | 11 |
| Number of Members | 9 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 38.112 tons |
| Dimensions (Metric) | 25,000 x 0,868 x 7,000 m |
| Dimensions (Imperial) | 82.02 x 2.85 x 22.97 feet |
