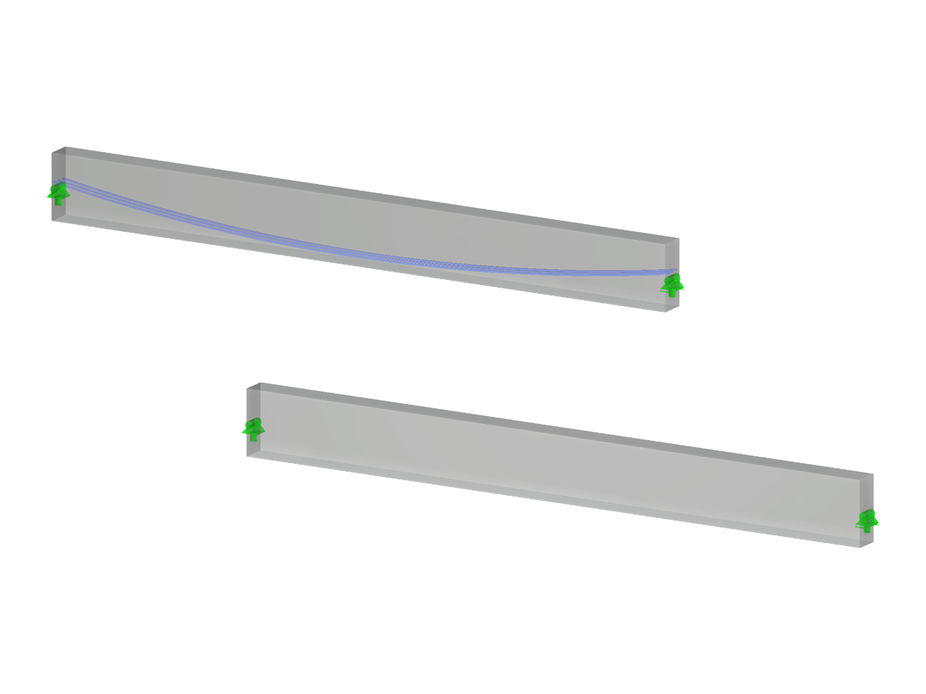

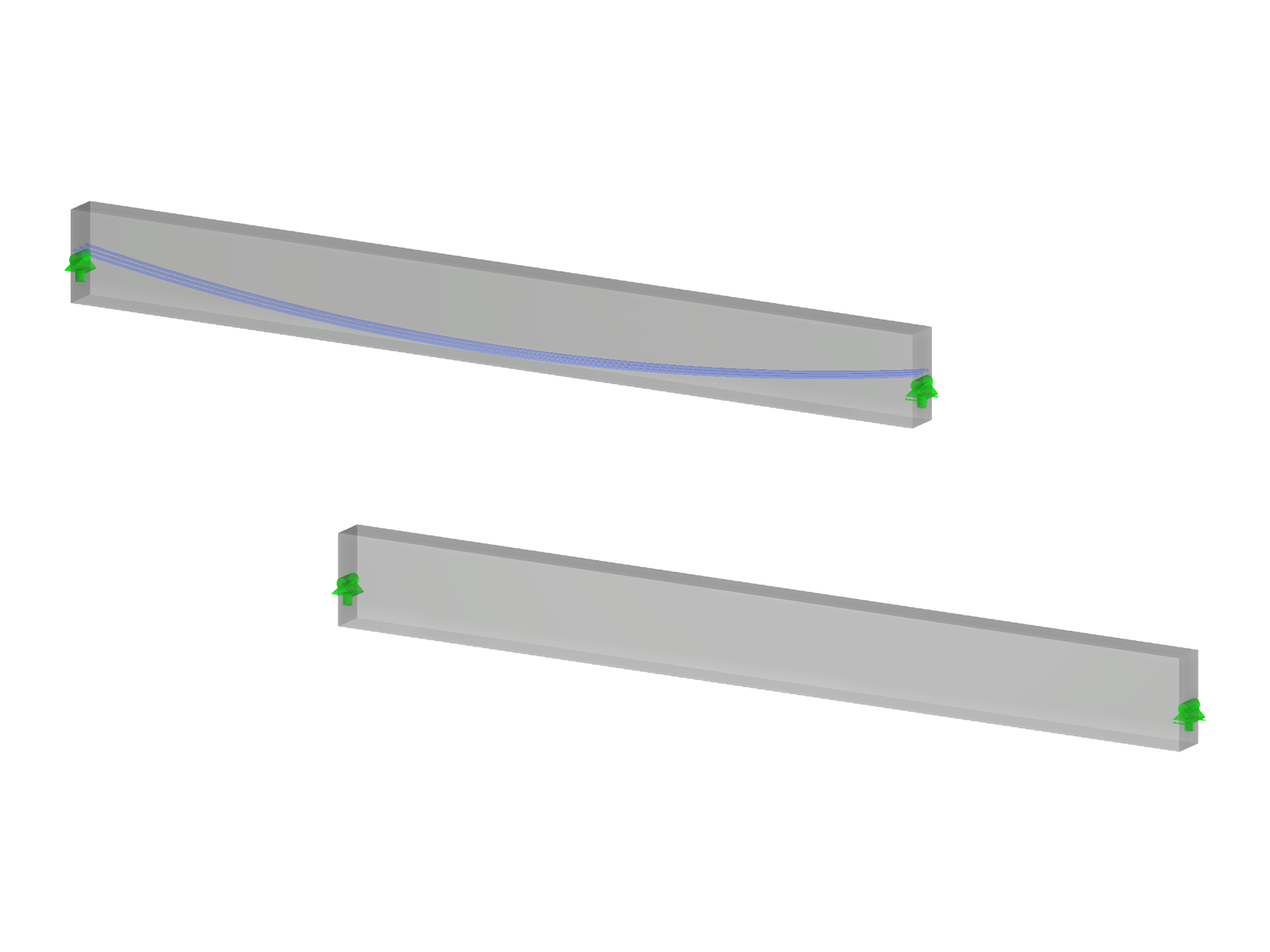

This model demonstrates a single-span beam featuring two variations: one as a simply supported beam, and the other reinforced with tendons for prestressing. The model showcases the influence of tendons introduced using the construction stages add-on, allowing for step-by-step tendon integration. This example provides insight into how prestressing affects beam behavior.
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Single-Span Beam With Prestressing Tendons
| Number of Nodes | 11 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 19 |
| Number of Result Combinations | 0 |
| Total Weight | 20.167 tons |
| Dimensions (Metric) | 22.500 x 0.430 x 0.240 m |
| Dimensions (Imperial) | 73.82 x 1.41 x 0.79 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
