Defining RSECTION Cross-Sections in Grasshopper

RSECTION cross-sections can be defined using a model template in Grasshopper.

Create template with RSECTION cross-section

Import your RSECTION cross-section into RFEM 6:

• Import RSECTION Cross-Section

Then save the RFEM file as a template (*.ft6 file):

• FAQ | How can I create a model template in RFEM 6?

Als Vorlage speichern

Refer to the template in Grasshopper

In Grasshopper, you can access this template file by storing the path of the saved RFEM template file in the export component (Use Template).

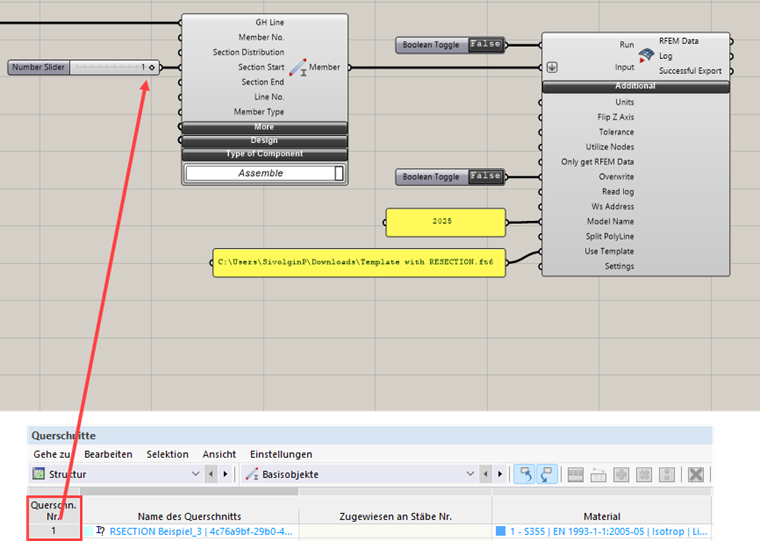

Cross-Section Number Reference | Grasshopper RSECTION
