Question
How can I create cross-sections with holes along the x-axis in RFEM or RSTAB?
Answer:

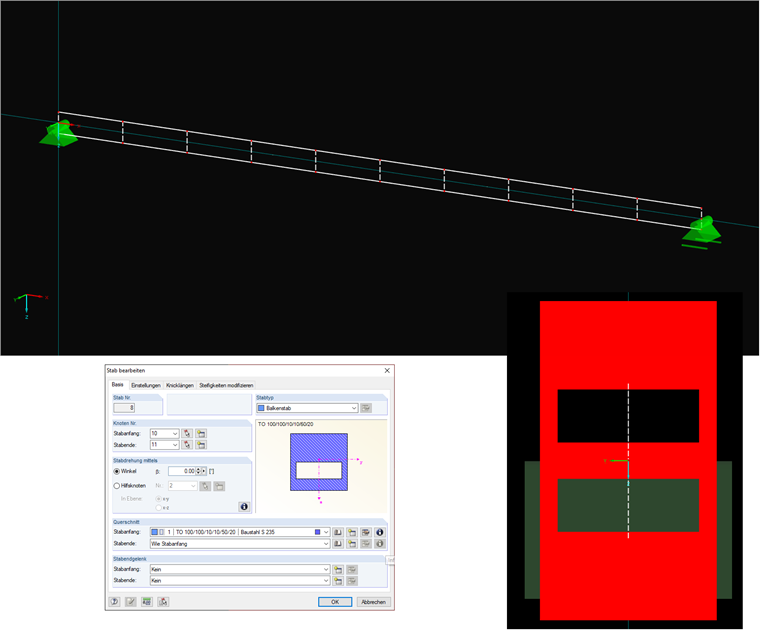

You can create any cross-section using the SHAPE‑THIN module. Otherwise, in RFEM/RSTAB you can only work with the parametrizable cross-sections and then apply members in parallel. Image 01 shows a small example.
