Download the model with solids from soil models here and open it with the structural FEA software RFEM.
This model is used in the free webinar "Geotechnical Analysis with Construction Stages in RFEM 6" on October 1, 2022 (in English, on November 30, 2022, in German).
Model Used in

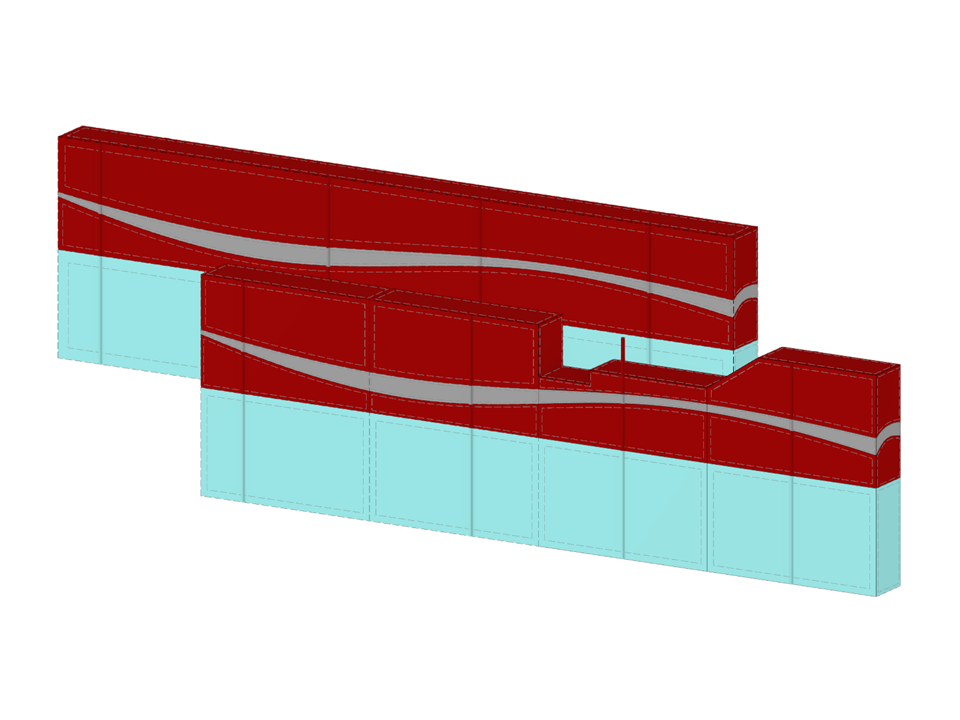

Solids from Soil Models
| Number of Nodes | 93 |
| Number of Lines | 176 |
| Number of Members | 0 |
| Number of Surfaces | 106 |
| Number of Solids | 20 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 29551.070 tons |
| Dimensions (Metric) | 120.000 x 23.500 x 45.000 m |
| Dimensions (Imperial) | 393.7 x 77.1 x 147.64 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
