Model 005591 | Concrete Building | Soil-Structure Interaction (SSI)

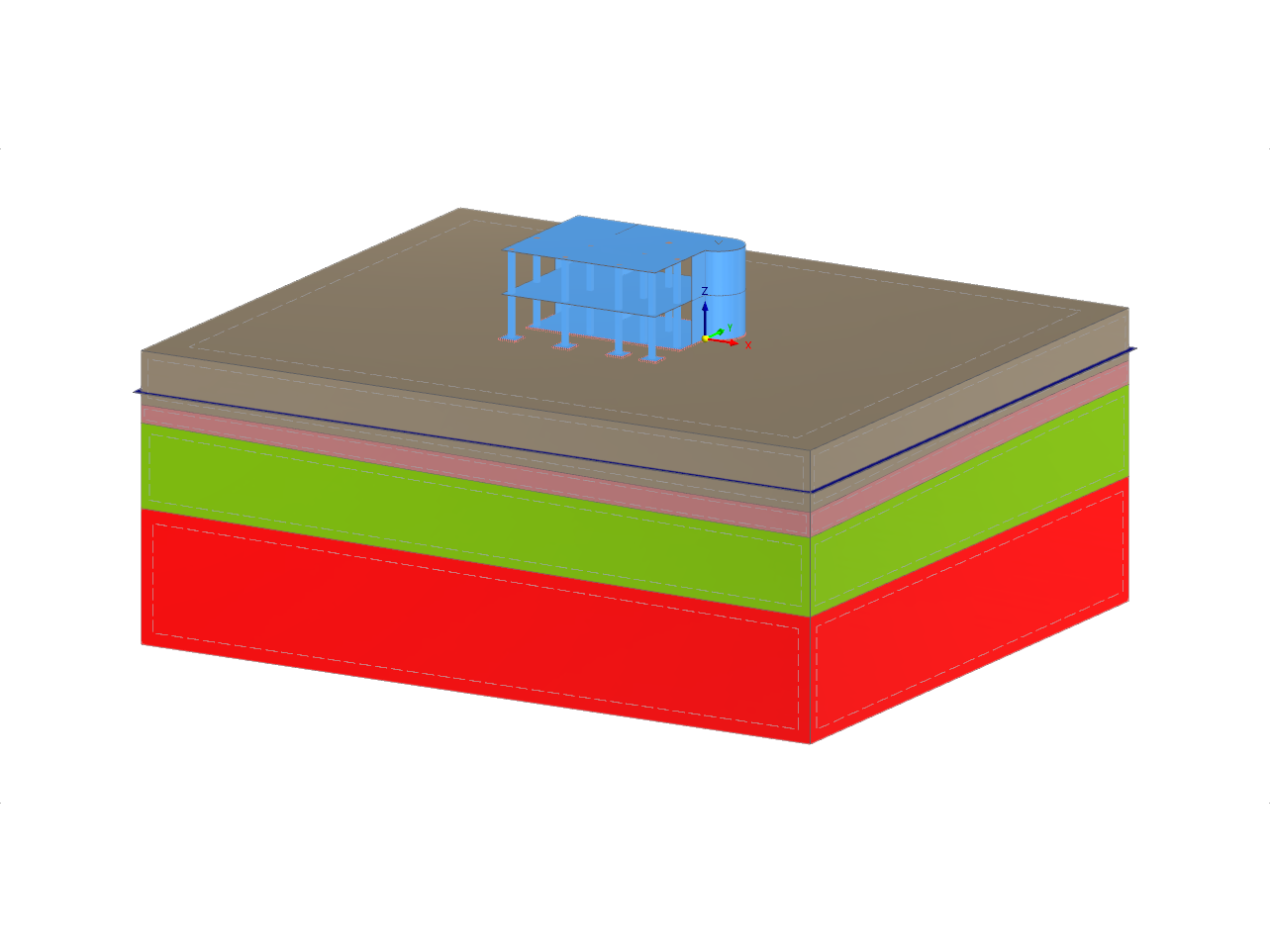

3D visualization of a reinforced concrete building model with soil-structure interaction, showcasing geotechnical analysis capabilities in RFEM 6.
This image showcases a reinforced concrete building with soil-structure interaction (SSI) analysis using the Geotechnical Analysis add-on in RFEM 6. This involves the interaction between the building's structural elements and the underlying soil foundation. The Geotechnical Analysis add-on allows for detailed evaluation of this interaction, enhancing design accuracy and safety. Through RFEM 6, complex structures can be analyzed for various geotechnical challenges, ensuring comprehensive engineering solutions.
3D Model
Specifications
| Number of Nodes | 108 |
| Number of Lines | 137 |
| Number of Members | 26 |
| Number of Surfaces | 41 |
| Number of Solids | 4 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 139024.100 tons |
| Dimensions (Metric) | 61,960 x 31,370 x 51,292 m |
| Dimensions (Imperial) | 203.28 x 102.92 x 168.28 feet |
