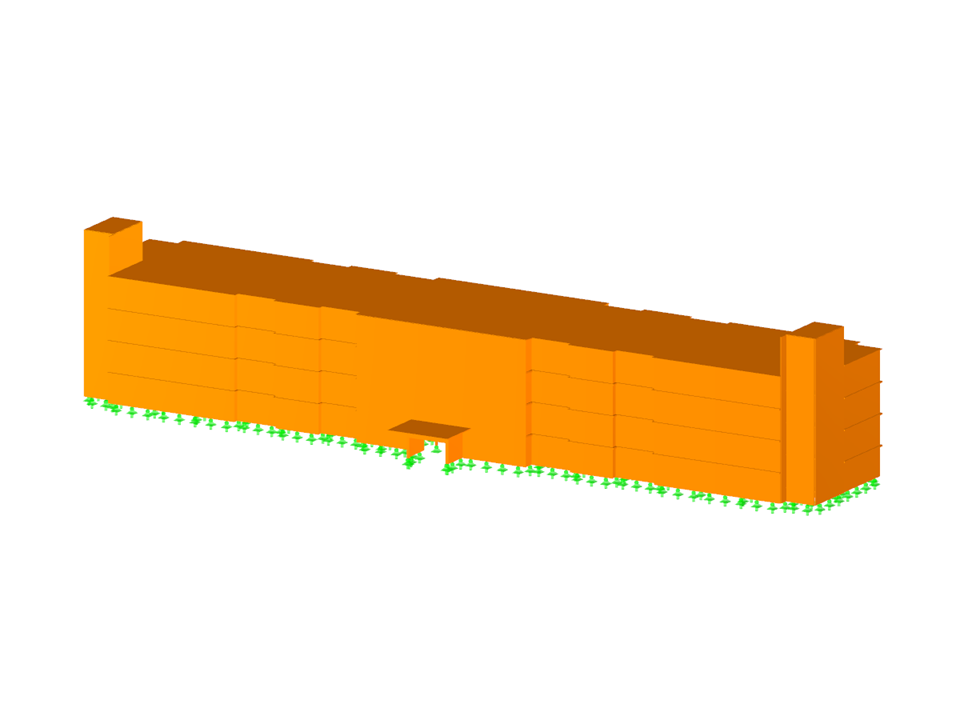

The hotel at the Redstone Arsenal in Huntsville, Alabama, was built in 2016 as the first US hotel made of cross-laminated timber and includes four stories with 92 rooms. 1,782 m³ of cross-laminated timber and 366 m³ of glued-laminated timber were used for the walls, floors, and roof, as well as for the stairwells and elevator shafts. The model shows a detailed 3D model as well as a display of internal forces in RFEM. The structure is displayed by Nordic Structures and Schaefer (© Nordic Structures, © Schaefer).
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |
Cross-Laminated Timber Hotel at Redstone Arsenal
Number of Nodes | 1324 |
Number of Lines | 1741 |
Number of Members | 90 |
Number of Surfaces | 374 |
Number of Load Cases | 6 |
Number of Load Combinations | 7 |
Number of Result Combinations | 5 |
Total Weight | 1851,115 t |
Dimensions (Metric) | 88.536 x 25.730 x 18.380 m |
Dimensions (Imperial) | 290.47 x 84.42 x 60.3 feet |
Program Version | 5.06.11 |
