Model of the degree thesis "Design of Cable-Stayed Cycle-Pedestrian Bridge over Pescara River"

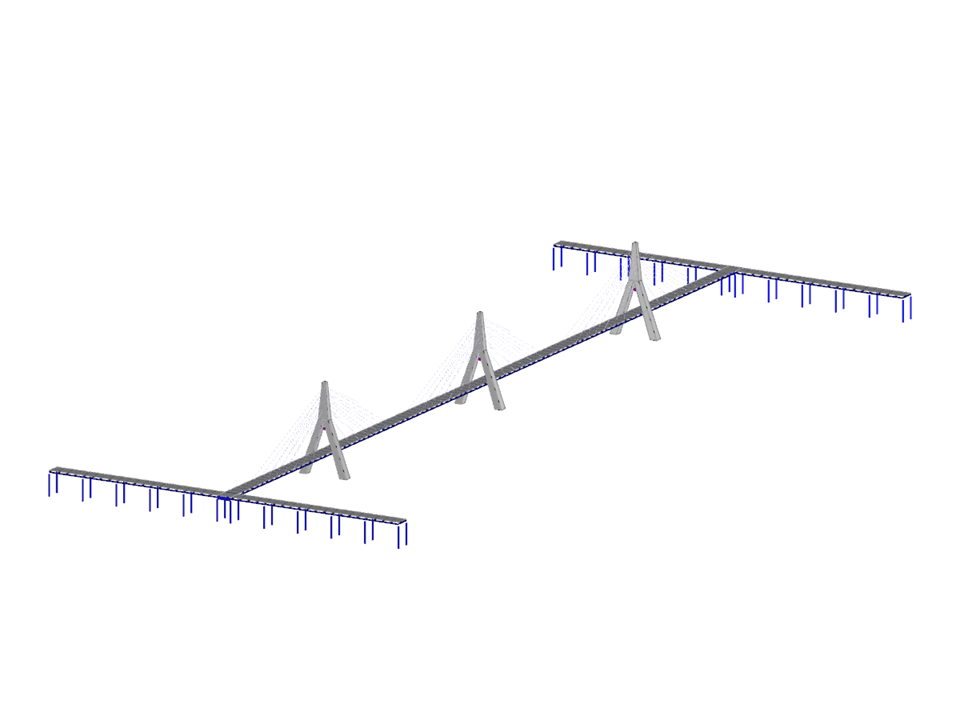

Design of Cable-Stayed Cycle-Pedestrian Bridge over Pescara River
No Download Possible
Customer Project / View Only
Number of Nodes | 592 |
Number of Lines | 766 |
Number of Members | 673 |
Number of Surfaces | 50 |
Number of Solids | 3 |
Number of Load Cases | 5 |
Number of Load Combinations | 8 |
Number of Result Combinations | 1 |
Total Weight | 1859.692 tons |
Dimensions (Metric) | 264.500 x 104.000 x 25.500 m |
Dimensions (Imperial) | 867.78 x 341.21 x 83.66 feet |
Program Version | 5.23.01 |
