Scaffolding
  • Description
  • Reviews (0)

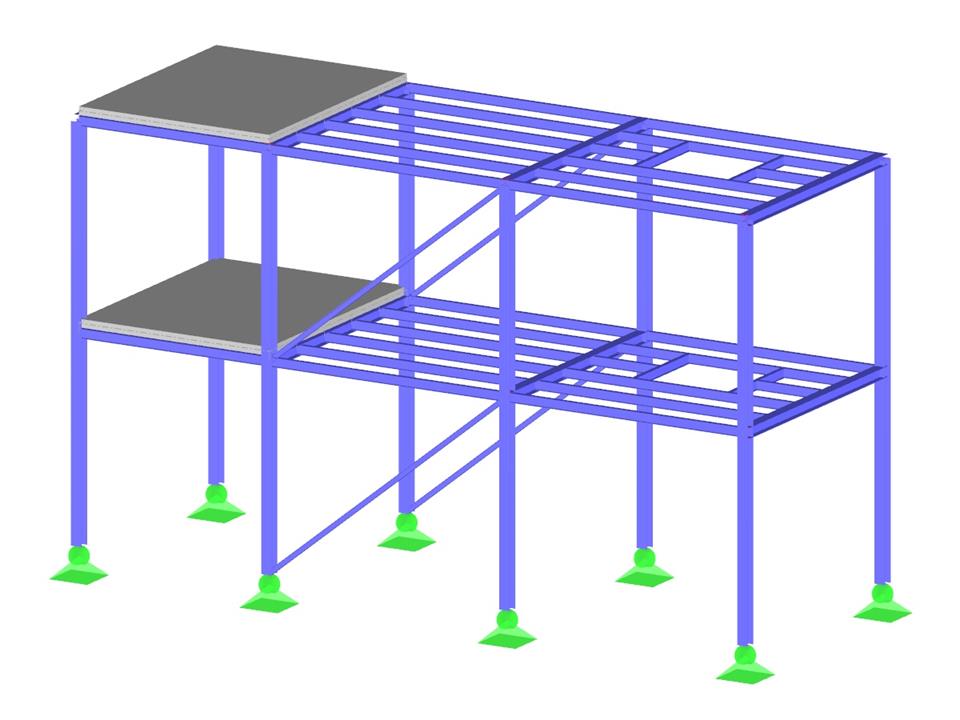

The model shows a steel scaffolding system based on the use of cold-formed steel cross-sections. It provides precise information on the material structure and cross-section geometry and is ideal for detailed simulations. The structure can be flexibly adapted to various scaffolding applications. The technical design ensures high load-bearing capacity and reliability.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Steel Scaffolding

Number of Nodes 68
Number of Members 114
Number of Load Cases 88
Number of Result Combinations 3
Total Weight 8,903 t
Dimensions (Metric) 14.195 x 5.195 x 8.098 m
Dimensions (Imperial) 46.57 x 17.04 x 26.57 feet
Program Version 8.04.00

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
