Candlewood Suites on Redstone Arsenal in Huntsville, Alabama, USA

The New Candlewood Suites on Redstone Arsenal in Huntsville, Alabama, is the first cross‑laminated timber (CLT) hotel constructed in the US.

A total of 1.782 m³ (62,930.7 ft³) of cross-laminated timber and 366 m³ (12,925.1 ft³) of glued-laminated timber were used for the four-story hotel with 92 rooms.

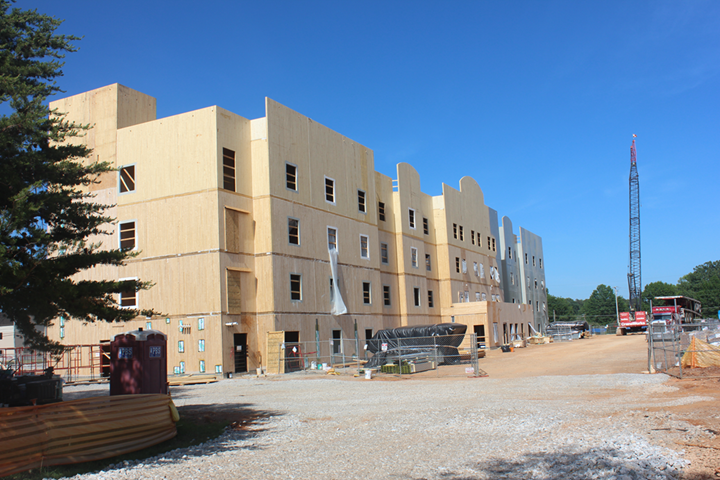

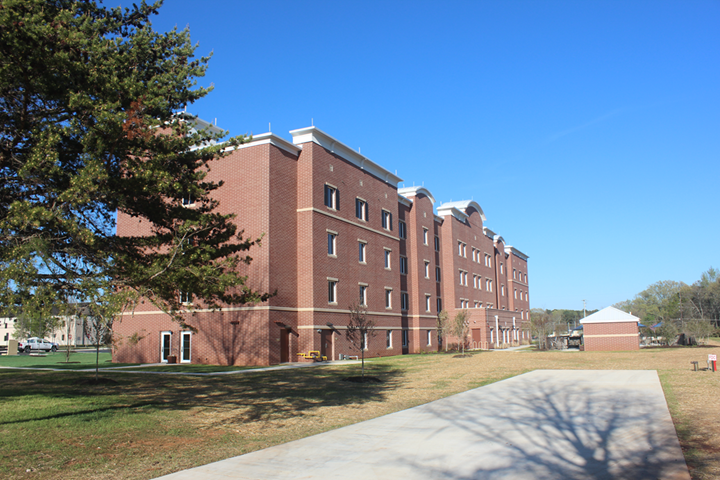

Candlewood Suites at Redstone Arsenal in Huntsville, Alabama, USA
702x
Cross-Laminated Timber Hotel at Redstone Arsenal

Modeling and Calculation

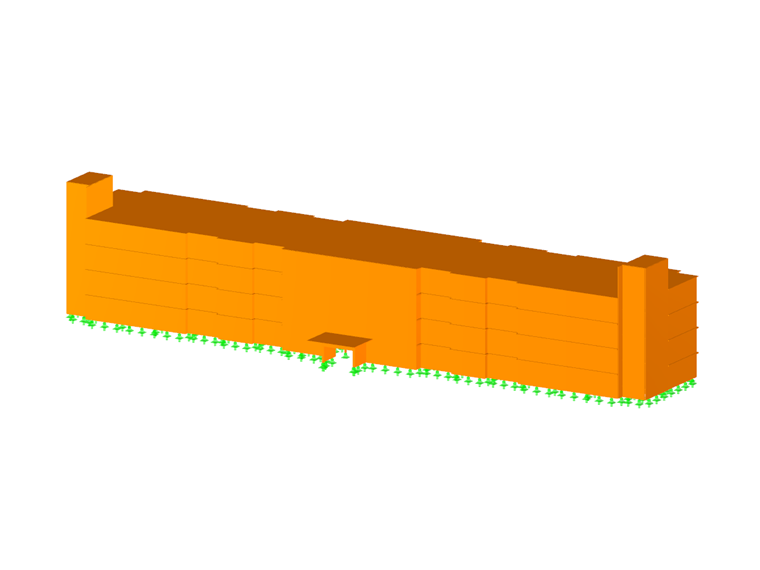

The building has the approximate dimensions of W x L x H = 89 m x 26 m x 18 m (291 ft x 85 ft x 59 ft). The structure was originally modeled in the 3D CAD software cadwork. The individual levels were then imported into RFEM as DXF background layers. These layers formed the basis for modeling the members and surfaces.

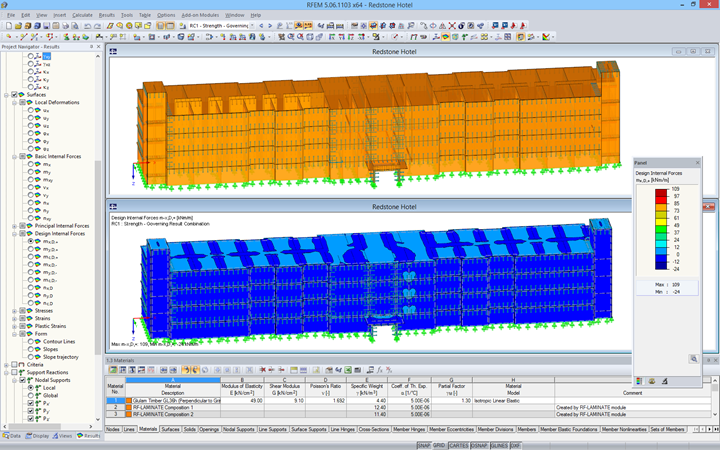

The Nordic cross‑laminated panel properties were defined with the use of the RF‑LAMINATE add‑on module. The calculation of the internal forces of the whole structure (taking into account the plate stiffnesses calculated in RF‑LAMINATE) was then performed in RFEM. The design of the structural components was carried out separately.

Structural Engineering Nordic Structures
Montreal, Quebec, Canada
www.nordic.ca
and
Schaefer
Cincinnati, Ohio, USA
www.schaefer-inc.com
Architecture Benham - formerly known as Leidos
St. Paul, Minnesota, USA
www.benham.com
Investor Lendlease
New York, New York, USA
www.lendlease.com

Project Specifications

Model Data

Number of Nodes 1324
Number of Lines 1741
Number of Members 90
Number of Surfaces 374
Number of Load Cases 6
Number of Load Combinations 7
Number of Result Combinations 5
Total Weight 1851,115 t
Dimensions (Metric) 88.536 x 25.730 x 18.380 m
Dimensions (Imperial) 290.47 x 84.42 x 60.3 feet
Program Version 5.06.11
