Download the model of a bolt connection with contact solid here, and open it with the FEA software RFEM.
This model is used in the free webinar "Working More Productively with RFEM" presented in the German version on July 14, 2020 (July 7, 2020 in English).

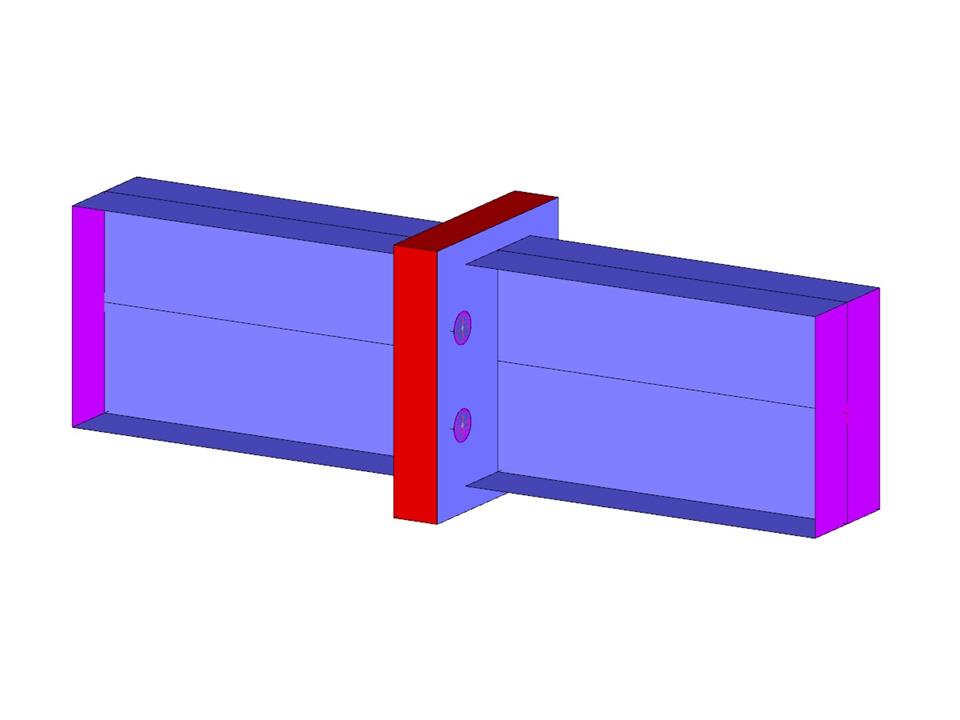

Bolt Connection with Contact Solid
Number of Nodes | 113 |
Number of Lines | 114 |
Number of Members | 48 |
Number of Surfaces | 30 |
Number of Solids | 1 |
Number of Load Cases | 4 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 0.007 tons |
Dimensions (Metric) | 0,425 x 0,140 x 0,120 m |
Dimensions (Imperial) | 1.39 x 0.46 x 0.39 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
