Dipl.-Ing. (FH) Robert Vogl
2020-08-13

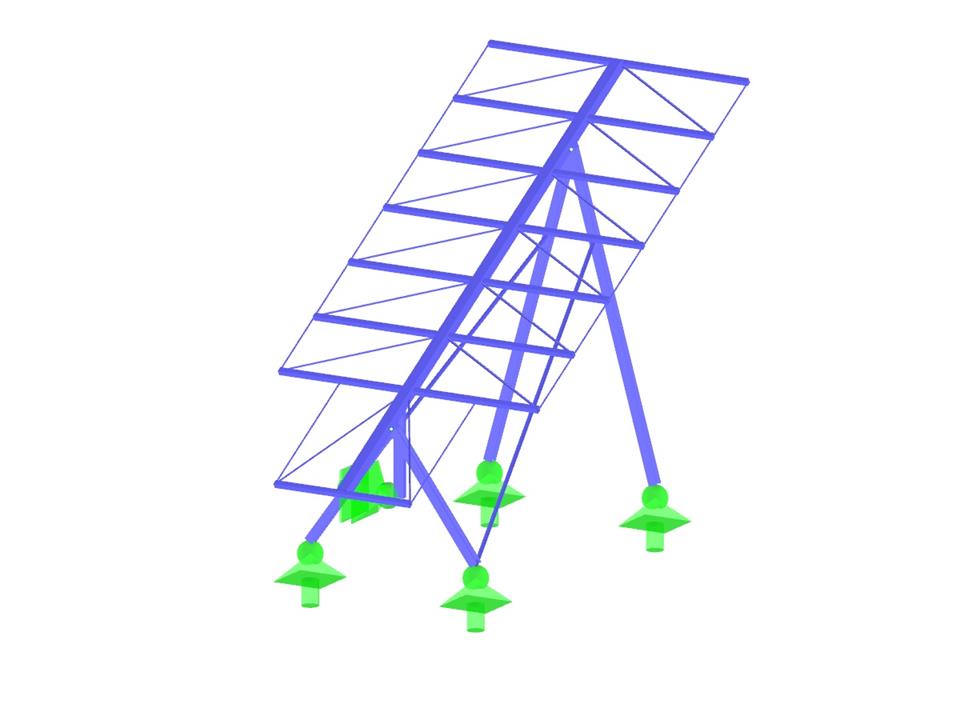

Solar Frame
  • Description
  • Reviews (0)

The model shows an innovative solar system made of steel, which impresses with the use of cold-formed steel cross-sections and specially developed cross-sections. The precise dimensioning ensures efficient load transfer and high structural integrity. Advantages including dimensional stability and material economy are highlighted and provide valuable impetus for optimizing steel structures. The clearly presented structural details and interfaces allow for easy comprehension of the system design.

Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Innovative Steel Solar Frame

No Download Possible Customer Project / View Only
Number of Nodes 40
Number of Members 67
Number of Load Cases 3
Number of Load Combinations 4
Number of Result Combinations 1
Total Weight 0,532 t
Dimensions (Metric) 3.130 x 5.773 x 4.344 m
Dimensions (Imperial) 10.27 x 18.94 x 14.25 feet
Program Version 7.03.09
