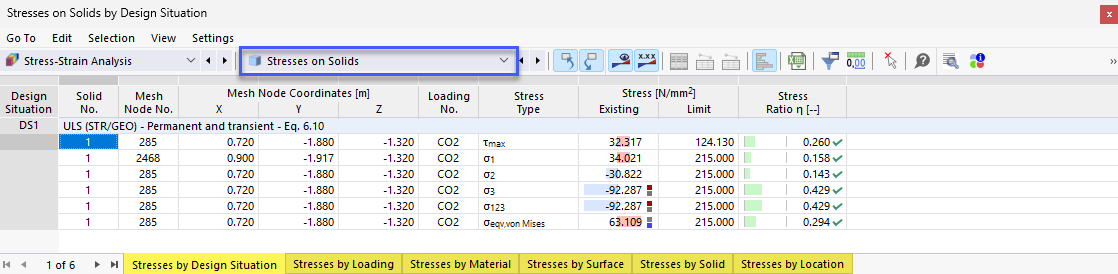

The result tables of the Stresses on Solids category contain the stresses determined on the boundary surfaces of the solids with the respective design ratios.
The solid stresses are sorted in the tabs according to the following criteria:
- Loads (design situations, load combinations)
- Solid Properties (Materials)
- Objects (surfaces, solids, FE mesh points)
Solid No.
For each stress type, this column shows the number of the solid where the stress is present.
Mesh Node No.
The column shows the number of the FE mesh node for which the program has determined the maximum design ratio.
Mesh Node Coordinates
The global coordinates X, Y, and Z of the FE mesh nodes are shown in three columns.
Design Situation
This column indicates the number of the Design Situation for which the individual stresses are available.
Loading
This column displays the numbers of the load or result combinations that are governing for the respective stress.
Stress type
This column lists the stress types that you have defined and assigned to the Solid Configurations.
Existing/limit stress
For each stress type, the provided stress is indicated with the corresponding limit value.
Stress ratio η
The final column shows the stress ratios (design ratios) related to the limit value. The utilization degree is expressed by the length of the colored bar.
