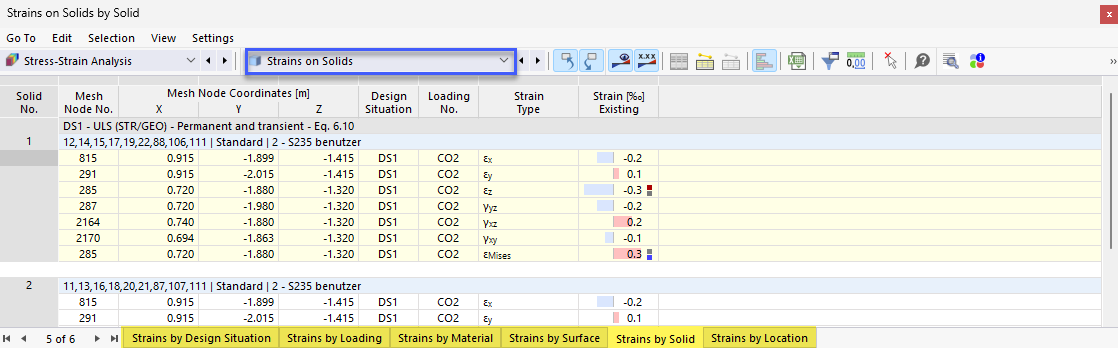

The result tables of the Strains on Solids category contain the result values of the determined strains.
The solid strains are sorted in the tabs according to the following criteria:
- Loads (design situations, load combinations)
- Solid Properties (Materials)
- Objects (surfaces, solids, FE mesh points)
Solid No.
For each strain type, this column displays the number of the solid for which the largest value is available.
Mesh Node No.
This column displays the number of the FE mesh node for which the maximum strain has been determined.
Mesh Node Coordinates
The global coordinates X, Y, and Z of the FE mesh nodes are shown in three columns.
Design Situation
This column indicates the number of the Design Situation for which the individual stresses are available.
Loading
This column displays the numbers of the load or result combinations that are governing for the respective stress.
Strain type
This column lists the strain types that you can define for the Solid Configurations .
Strain Provided
RFEM shows the existing strain for each strain type.
