Printout report

The printout report manager provides all tables of the stress-strain analysis that are also displayed in the program interface.

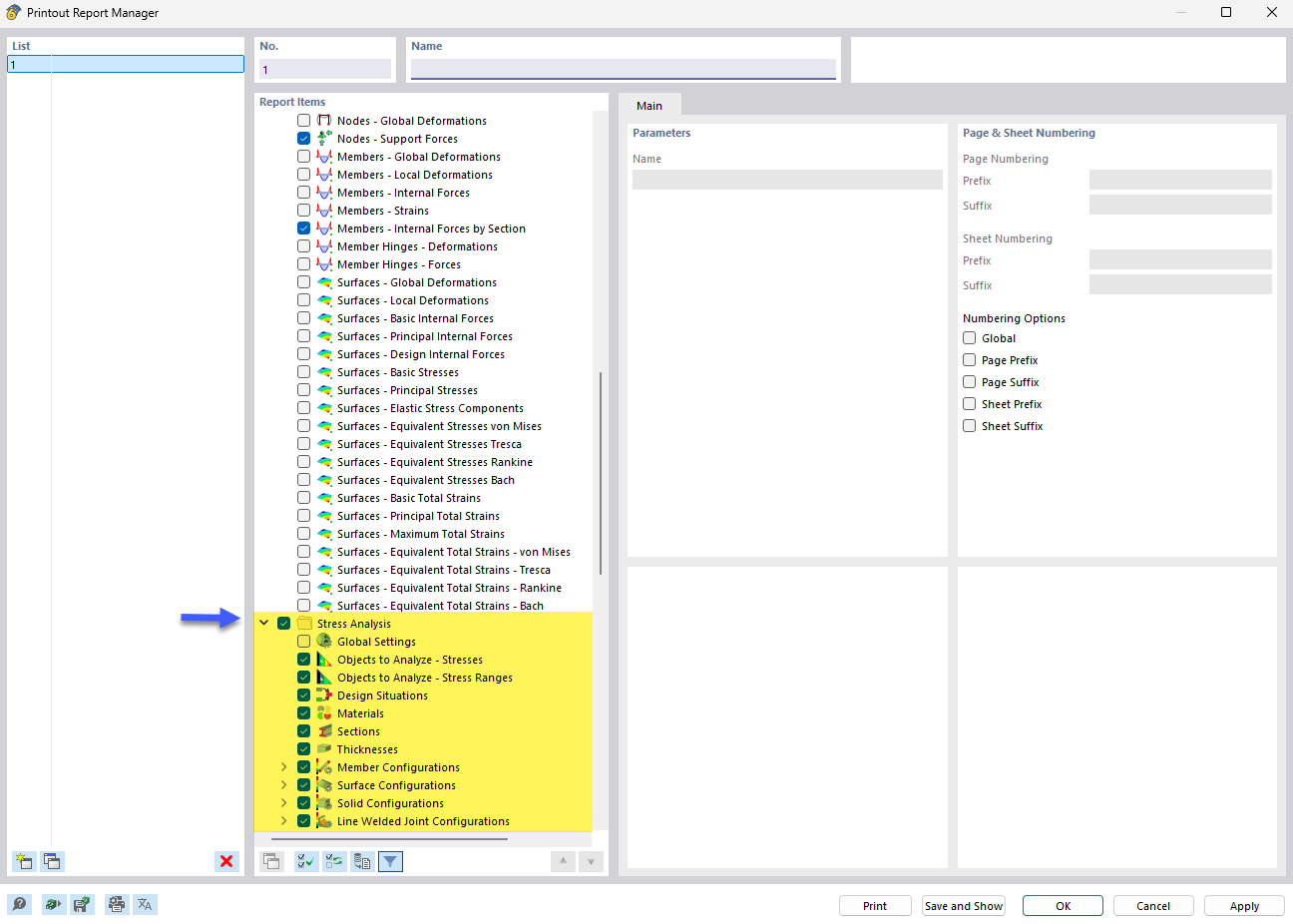

Printout Report Manager with Chapters for Stress-Strain Analysis

In addition to the input data for the objects and configurations, the navigator contains the report elements for the results of stresses, stress ranges, and strains, if applicable. Use the check boxes to define the tables you need for the documentation.

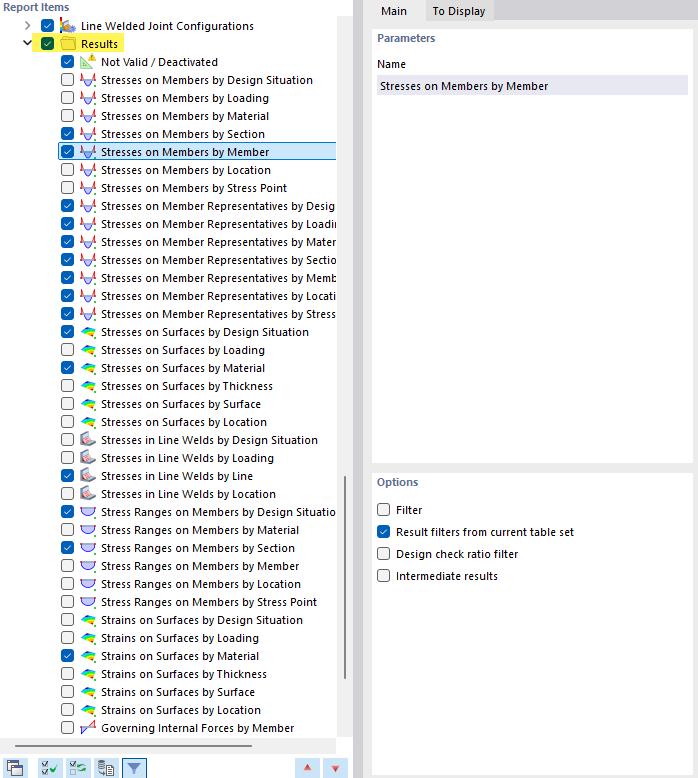

Selecting Stresses, Stress Ranges, and Strains

You can also use the filter options to customize the tabular output. You can filter the result tables by specific criteria:

• Object filter by number or object selection
• Result filter with the same filter options as in the Result Table Manager
• Design check ratio filter for result values

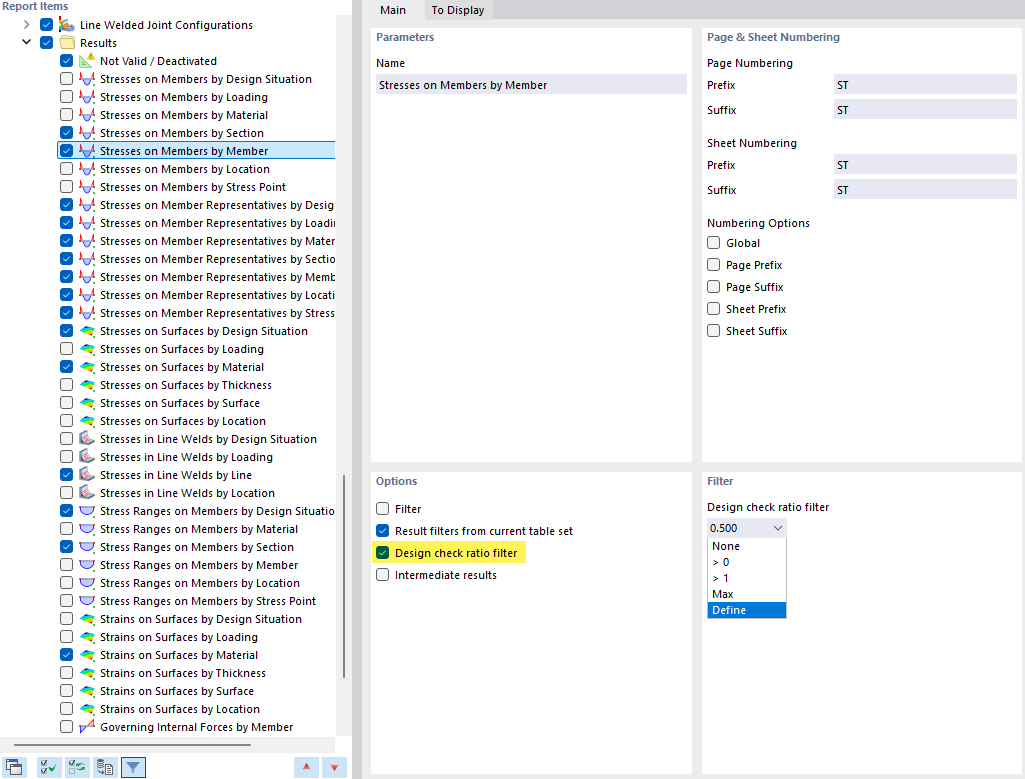

Filter Options for Design Check Ratio

The Result Details with the stress equations can also be integrated in the printout report. Use the corresponding list button in the 'Design Check Details' dialog box .

In the print preview of the printout report, you can check the data, arrange it properly, and add graphics and texts.

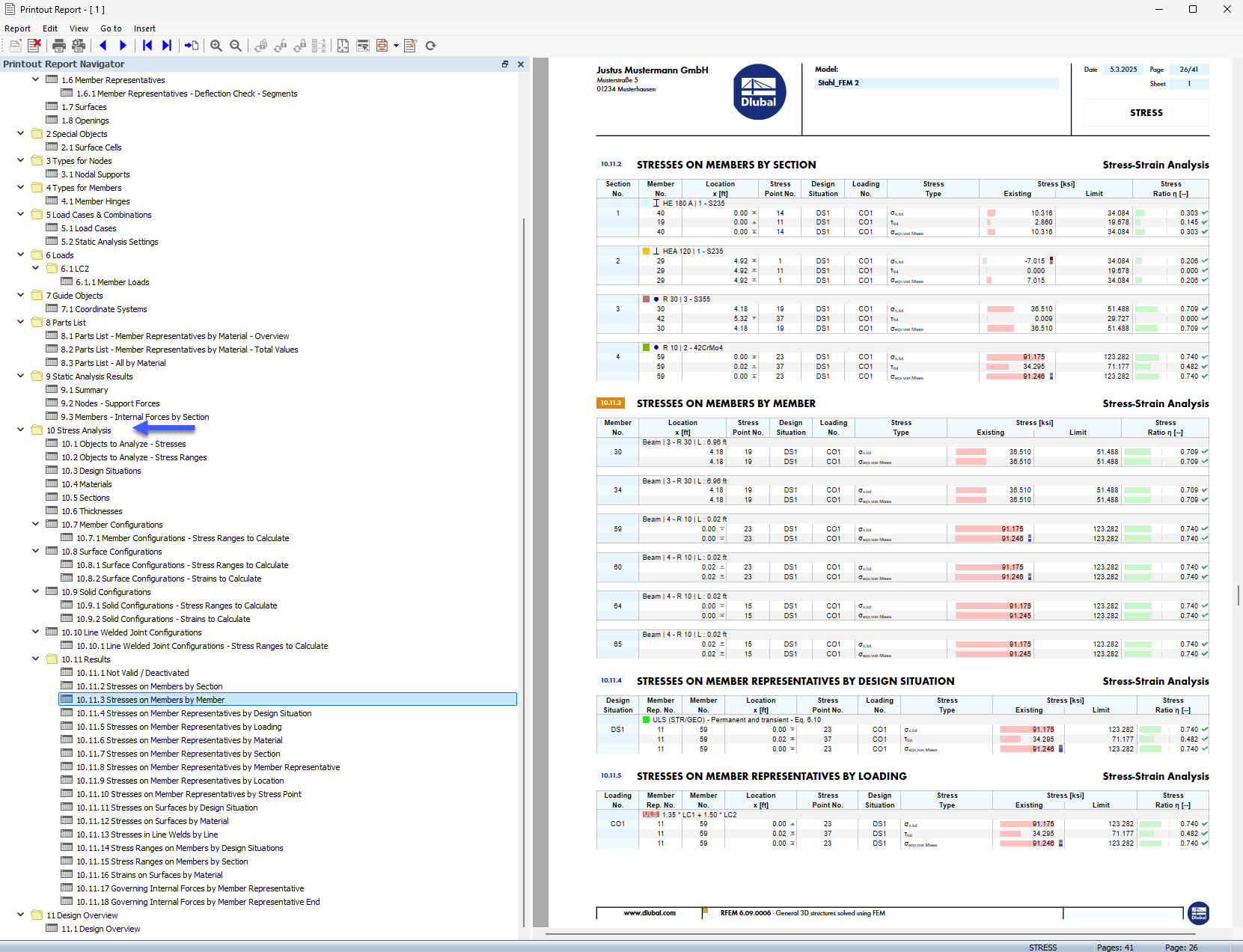

Printout Report with Stress-Strain Analysis Data
