Stress-Strain Analysis Add-on

This manual describes the "Stress-Strain Analysis" add-on for the programs RFEM 6 and RSTAB 9. Since the input and functions of the stress-strain analysis are identical in both programs, the description of the add-on only refers to RFEM 6. The explanations also apply to the stress-strain analysis in RSTAB 9.

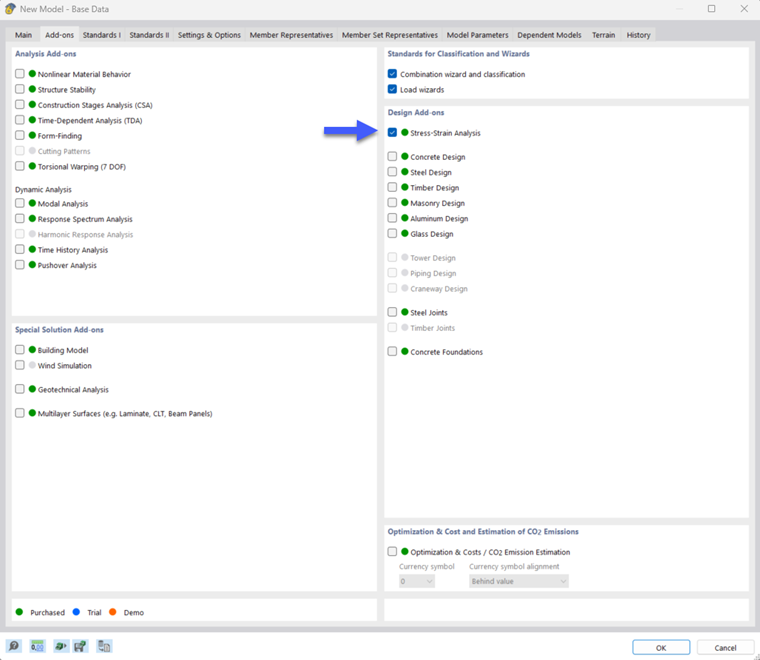

You can activate or deactivate the use of the design add-on in the Add-ons tab of the model's Base Data.

A green dot in front of the add-on description means that a license is available. An orange or blue dot indicates that you can only use the add-on as a demo or trial version with a limited range of functions.

After activating the design add-on, the user interface is extended by some new entries in the navigator, tables, and dialog boxes. This way, the Stress-Strain Analysis is fully integrated into the user interface of the program RFEM or RSTAB.
