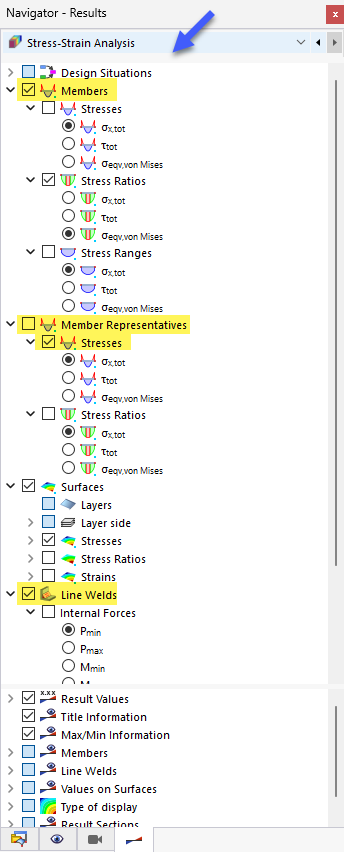

The evaluation and documentation of the results can also be carried out graphically. To display the various types of results on the model, the Navigator - Results is adjusted to the design add-on. The results are managed under the Stress-Strain Analysis result type in the list of the navigator.
In the work window, you have the same selection and evaluation options as for the structural analysis, for example result diagrams of members or result sections of surfaces.
Control Panel

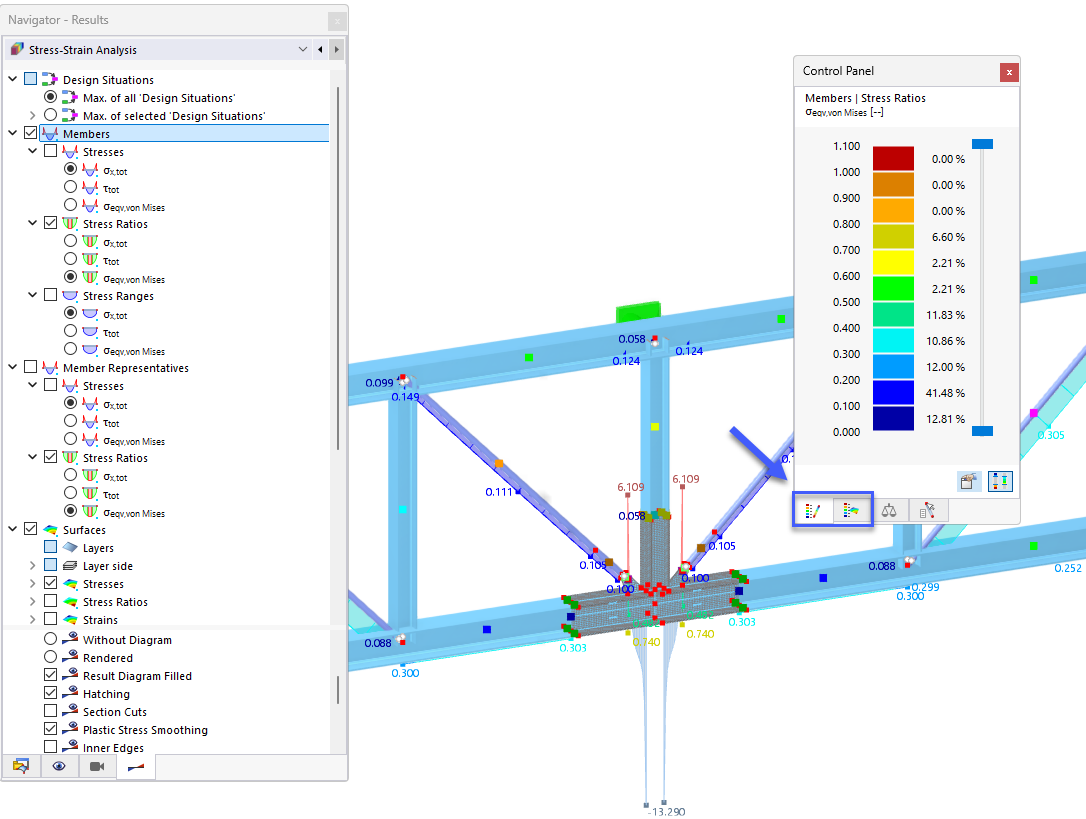

The control panel is also aligned with the results of the stress-strain analysis. There, you can adjust the colors for stresses, stress ratios, or ranges. This may be necessary if there are several result types displayed at the same time.
Furthermore, you can use the control panel – as you know it from the structural analysis – to scale the factors of the result distributions, or to define the objects for the result display.
The following chapters describe the result types for the individual object types.
