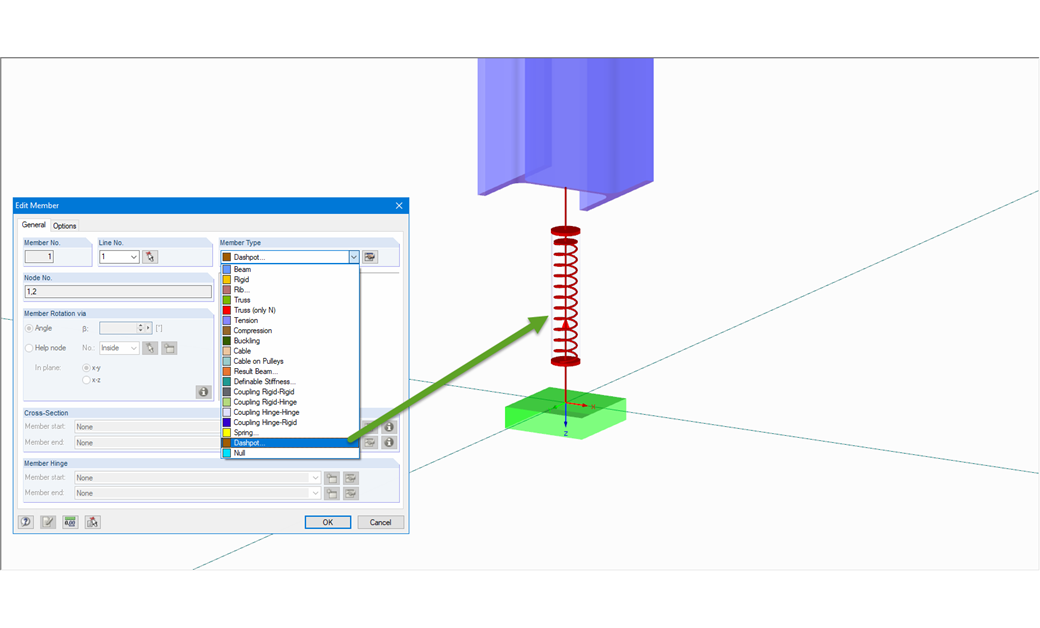

The member type 'Dashpot' can be used for time history analyzes in RFEM/RSTAB with the add-on modules RF-/DYNAM Pro - Forced Vibrations and RF-/DYNAM Pro - Nonlinear Time History. This linear viscous damping element considers forces dependent on velocity.
In viskoelastischer Hinsicht gleicht der Stabtyp 'Dämpfer' dem Kelvin-Voigt-Modell, welches aus dem Dämpferelement und einer elastischen Feder (beides parallelgeschaltet) besteht.
