Download the model of a reinforced concrete building here, and open it with the structural FEA software RFEM.
This model is used in the free webinar "Interfaces in RFEM 6 Briefly Presented: Archicad and SAF" on November 16, 2022 (in English; on November 15, 2022 in German).
Model Used in

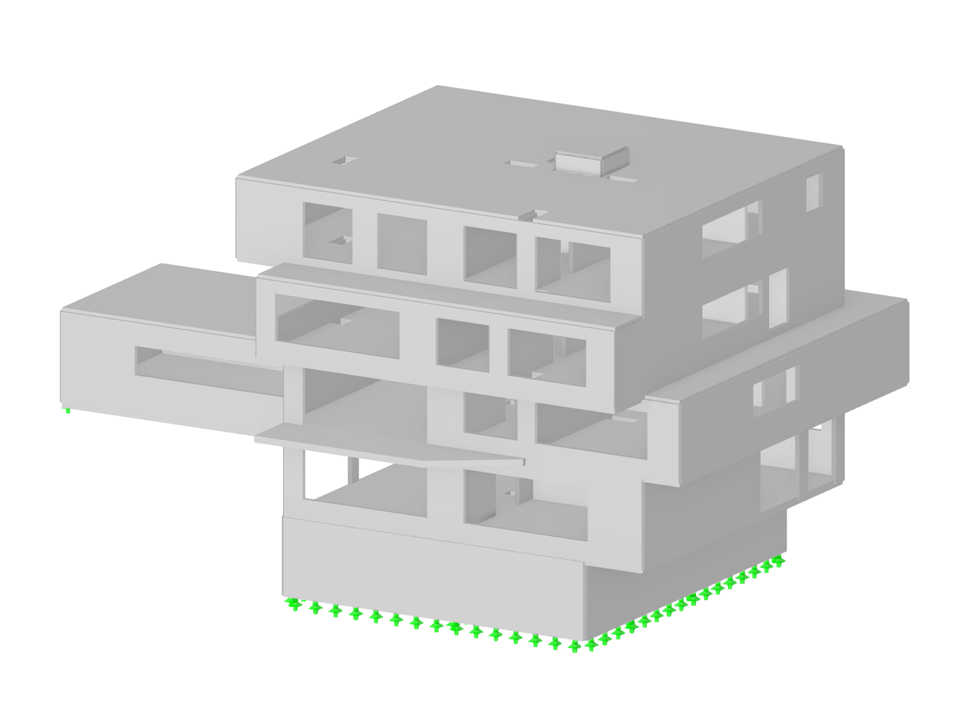

Reinforced Concrete Building
| Number of Nodes | 559 |
| Number of Lines | 773 |
| Number of Members | 0 |
| Number of Surfaces | 97 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1666.443 tons |
| Dimensions (Metric) | 31.500 x 16.130 x 19.255 m |
| Dimensions (Imperial) | 103.35 x 52.92 x 63.17 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
