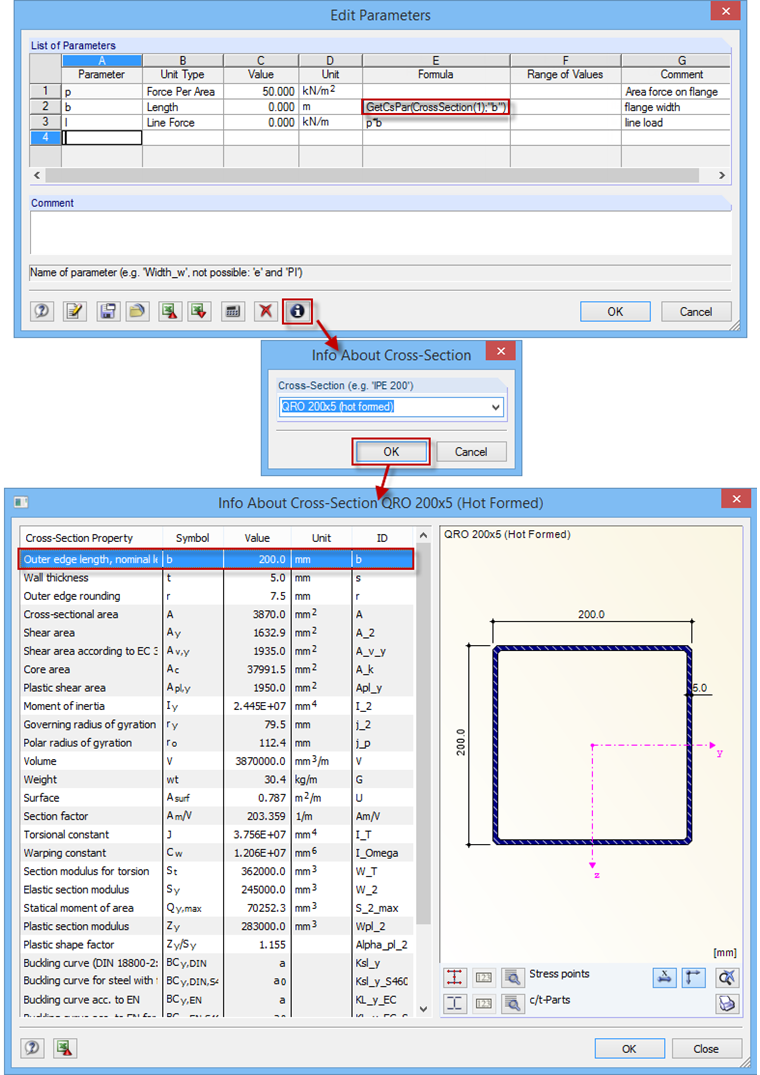

The CrossSection() formula is embedded in the GetCsPar(;) formula. CrossSection(n) is taken as a string from the nth row of the cross-section table. GetCsPar("Cross-section", "ID") requires the cross‑section as a string and the value ID that is sought. You can obtain the ID from the window “Edit parameters” using the Info button, as shown in the image. Many parameters can also help you find eccentric loads, for example.
Question
How can I use cross-section values (for example, height, width, and so on) for parametrization?
The CrossSection() formula is embedded in the GetCsPar(;) formula. CrossSection(n) is taken as a string from the nth row of the cross-section table. GetCsPar("Cross-section", "ID") requires the cross‑section as a string and the value ID that is sought. You can obtain the ID from the window “Edit parameters” using the Info button, as shown in the image. Many parameters can also help you find eccentric loads, for example.
RFEM and RSTAB models can be saved as 3D glTF models (*.glb and *.glTF formats). View the models in 3D in detail with a 3D viewer from Google or Babylon. Take your VR glasses, such as Oculus, to "walk" through the structure.
You can integrate the 3D glTF models into your own websites using JavaScript according to the instructions (as on the Dlubal website Models to Download): "Easily display interactive 3D models on the web & in AR" .
With the Camera Fly Mode view option, you can fly through your RFEM and RSTAB structure. Control the direction and speed of the flight with your keyboard. Additionally, you can save the flight through your structure as a video.
The direct interface with Revit allows you to update the Revit model according to the changes you have made in RFEM or RSTAB. Depending on the modification, the Revit objects may have to be regenerated (deleting the object and subsequent regeneration). The regeneration is performed on the basis of the RFEM/RSTAB model.
If you want to avoid this regeneration, activate the check box 'Update only materials, thicknesses, and sections'. In this case, only the properties of the objects will be adjusted. Changes different from those in material, surface thickness, and section are, however, not considered in this case.
The reinforcement proposal from RF-/CONCRETE Members can be exported to Revit. The rectangular and circular cross-sections are currently supported.
The reinforcement bars can be modified retroactively in Revit.
