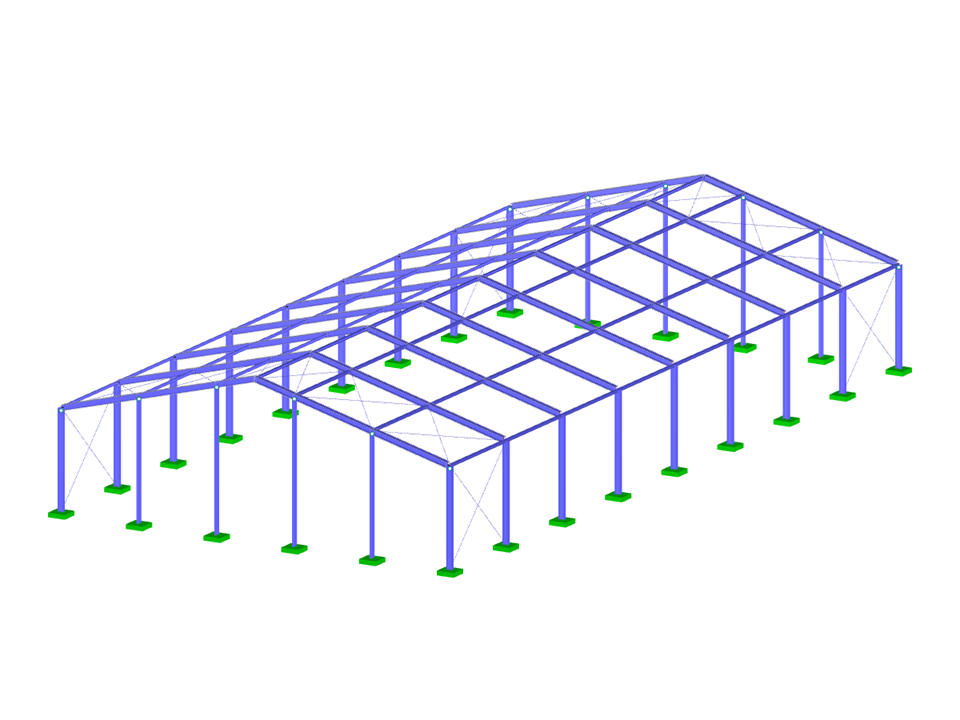

Steel structure of Simple Hall
  • Description
  • Reviews (0)

This model illustrates visual aids for defining the support conditions of member sets in accordance with EN 1993-1-1, Section 6.3.4. Based on a steel hall, the general method and the orientation of the axis system are presented in a practical way. The clear modeling gives engineers a precise insight into the implementation of technical standard specifications.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Steel Hall Support Conditions

Number of Nodes 89
Number of Lines 168
Number of Members 168
Number of Load Cases 1
Total Weight 53.542 t
Dimensions (Metric) 26.077 x 51.077 x 9.888 m
Dimensions (Imperial) 85.55 x 167.58 x 32.44 feet
Program Version 5.23.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
