This model was used to show the different actions of load cases when creating combinations automatically.
Model Used in
Single-Span Beam
Number of Nodes | 2 |
Number of Lines | 1 |
Number of Members | 1 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 4 |
Number of Load Combinations | 6 |
Number of Result Combinations | 1 |
Total Weight | 0.819 tons |
Dimensions (Metric) | 7.000 x 0.000 x 0.000 m |
Dimensions (Imperial) | 22.97 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
Related Models
5449x
198x

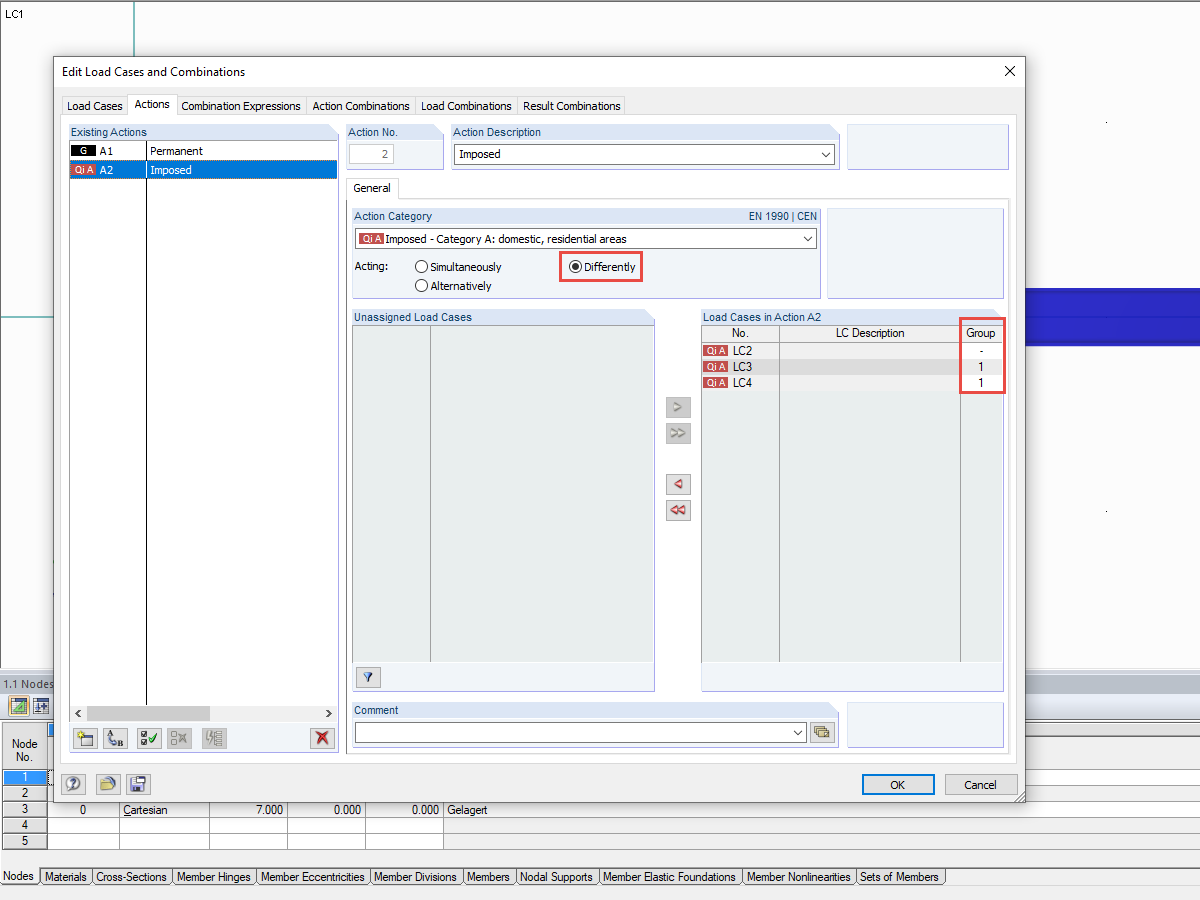

![Different Effects of Load Cases and Assignment to Groups](/en/webimage/010397/3015987/1_LC_acting_differently.png?mw=512&hash=59bf943b91205019ffed1dc2e2bffc23c93a989c)
For automatic load case combination in RFEM and RSTAB, you have to enter the possible interaction of load cases. In addition to the simultaneous or alternative occurrence of all load cases of an action, an option for different combination conditions is possible.

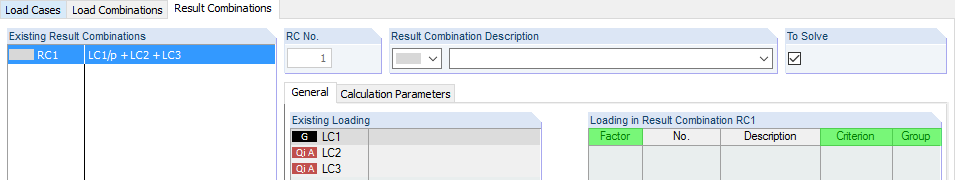

![Result Combination](/en/webimage/009641/2419835/01-en-png-png.png?mw=512&hash=6ca63b32e8ca5da057de21c4f204d41103e6fe20)
