As the geothermal energy market is continuously increasing, the German company BAUER Maschinen GmbH has developed a new deep drilling rig, while Dlubal customer Ing.-Büro H.-U. Möller was in charge of the plant's structural analysis. The system is used to make borings reaching to a depth of 22,965 ft in the area of geothermal energy, oil, or gas.
In addition, it is possible to extend existing drillings using modern drilling technology. The drill rig was built in Germany and distributed worldwide.
Ing.- Büro H.-U. Möller, Minden
www.hum-minden.de

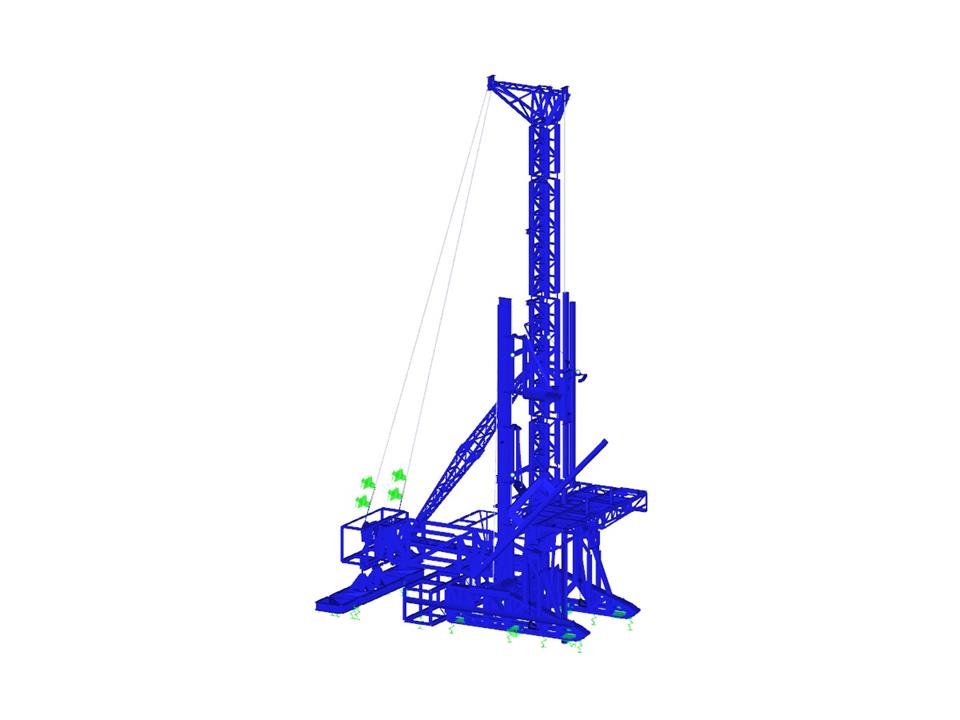

Non-deformed and deformed model of deep drilling rig in RSTAB (© IB H.-U. Möller)
In addition, it is possible to extend existing drillings using modern drilling technology. The drill rig was built in Germany and distributed worldwide.
Ing.- Büro H.-U. Möller, Minden
www.hum-minden.de
Non-deformed and deformed model of deep drilling rig in RSTAB (© IB H.-U. Möller)
Submodels
Deep Drilling Rig
No Download Possible
Customer Project / View Only
| Number of Nodes | 1137 |
| Number of Members | 2052 |
| Number of Load Cases | 28 |
| Number of Load Combinations | 110 |
| Number of Result Combinations | 2 |
| Dimensions (Metric) | 22.819 x 15.235 x 41.680 m |
| Dimensions (Imperial) | 74.87 x 49.98 x 136.75 feet |
| Program Version | 8.04.00 |
