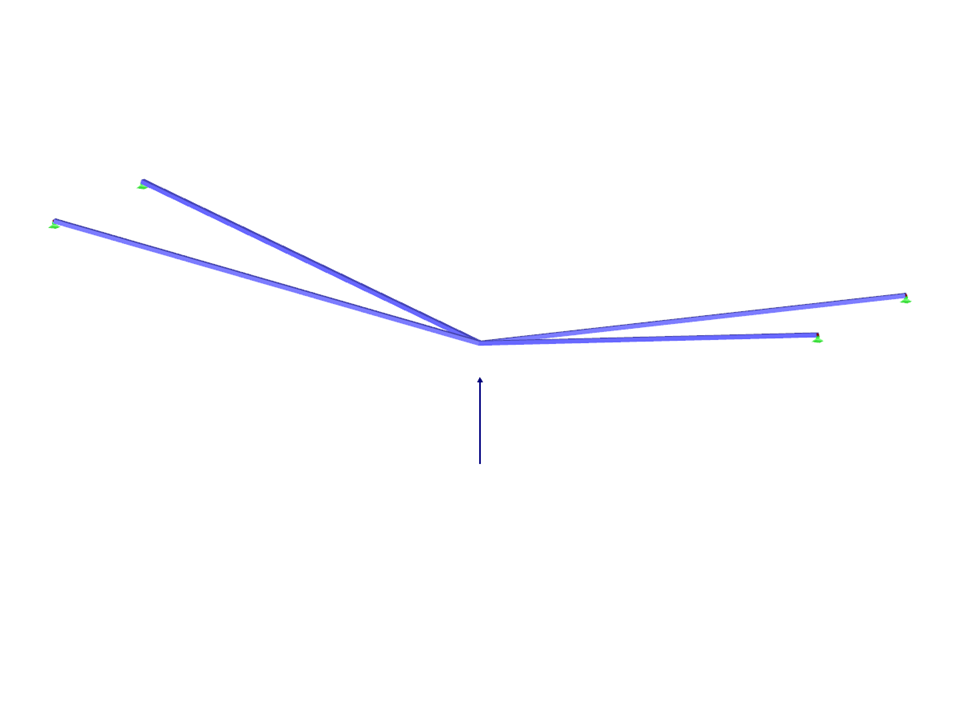

A structure is made of four truss members, which are embedded into hinge supports. The structure is loaded by a concentrated force and alternatively by imposed nodal deformation over the critical limit point, when snap-through occurs. Imposed nodal deformation is used in RFEM 5 and RSTAB 8 to obtain full equilibrium path of the snap-through. The self-weight is neglected in this example. Determine the relationship between the actual loading force and the deflection considering large deformation analysis. Evaluate the load factor at given deflections.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |
Verification Example 000200 | 1
Number of Nodes | 5 |
Number of Lines | 4 |
Number of Members | 4 |
Number of Load Cases | 1 |
Total Weight | 0.053 tons |
Dimensions (Metric) | 5.228 x 1.164 x 0.582 m |
Dimensions (Imperial) | 17.15 x 3.82 x 1.91 feet |
Program Version | 5.16.00 |
