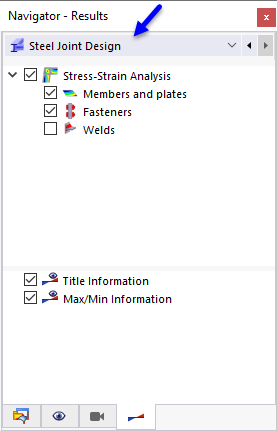

The evaluation and documentation of the design results is usually done graphically. For this, you can use the result display on the model. The Navigator – Results is refers to the result categories of the design add-on. The results of the components are managed under the Steel Joint Design result type in the list of the navigator.
The work window provides the same selection and evaluation options as for the structural analysis; for example, it shows visibilities.

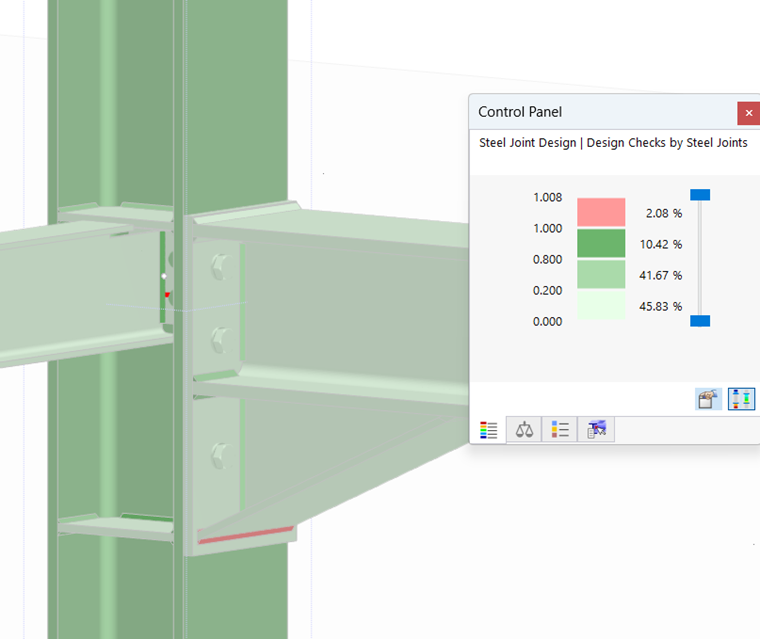

The control panel is also adapted to the Steel Joint Design results.
In contrast to the static analysis, only four colors are used for the results. This color gradation provides you with a good overview of the design ratios of the components. The standard colors have the following meaning:
|
No or only small design ratios (up to 20%) |
|
Medium design ratios (20% to 80%) |
|
High design ratios (80% to 100%) |
|
Exceeded design ratios (over 100 %) |
You can adjust the panel to the eleven default colors of RFEM at any time. Click one of the colors in the panel to open the Edit Result Colors dialog box.
In the control panel, you can also select the objects to specify the result display.
Important

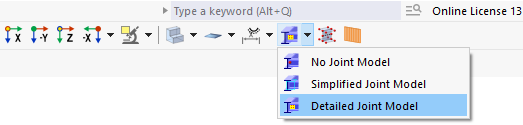

The graphical results are not displayed on the simplified joint model. If you do not see any results on the connection node, click the
button in the toolbar at the top right and set the Detailed Joint Model option.
