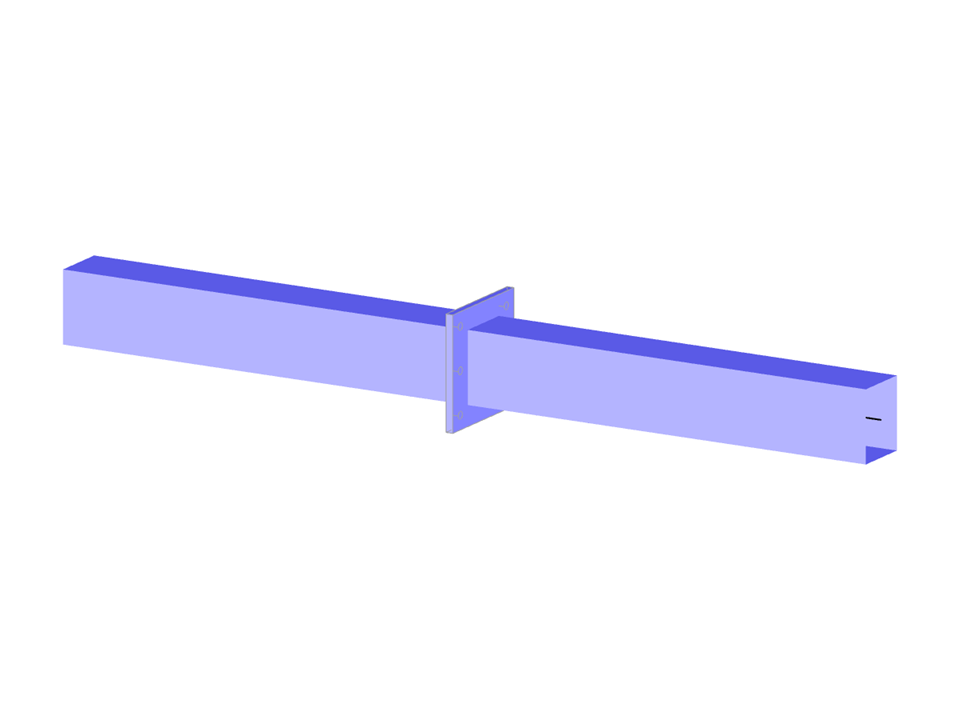

Complete parameterization of the box section connection geometry with dimensional control and joint pins.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |
Box HSS Profile Connection
Block parameters editable dynamically | |
Number of Nodes | 92 |
Number of Lines | 90 |
Number of Members | 8 |
Number of Surfaces | 40 |
Number of Solids | 1 |
Total Weight | 0.586 tons |
Dimensions (Metric) | 3.025 x 0.400 x 0.400 m |
Dimensions (Imperial) | 9.92 x 1.31 x 1.31 feet |
Program Version | 5.26.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
