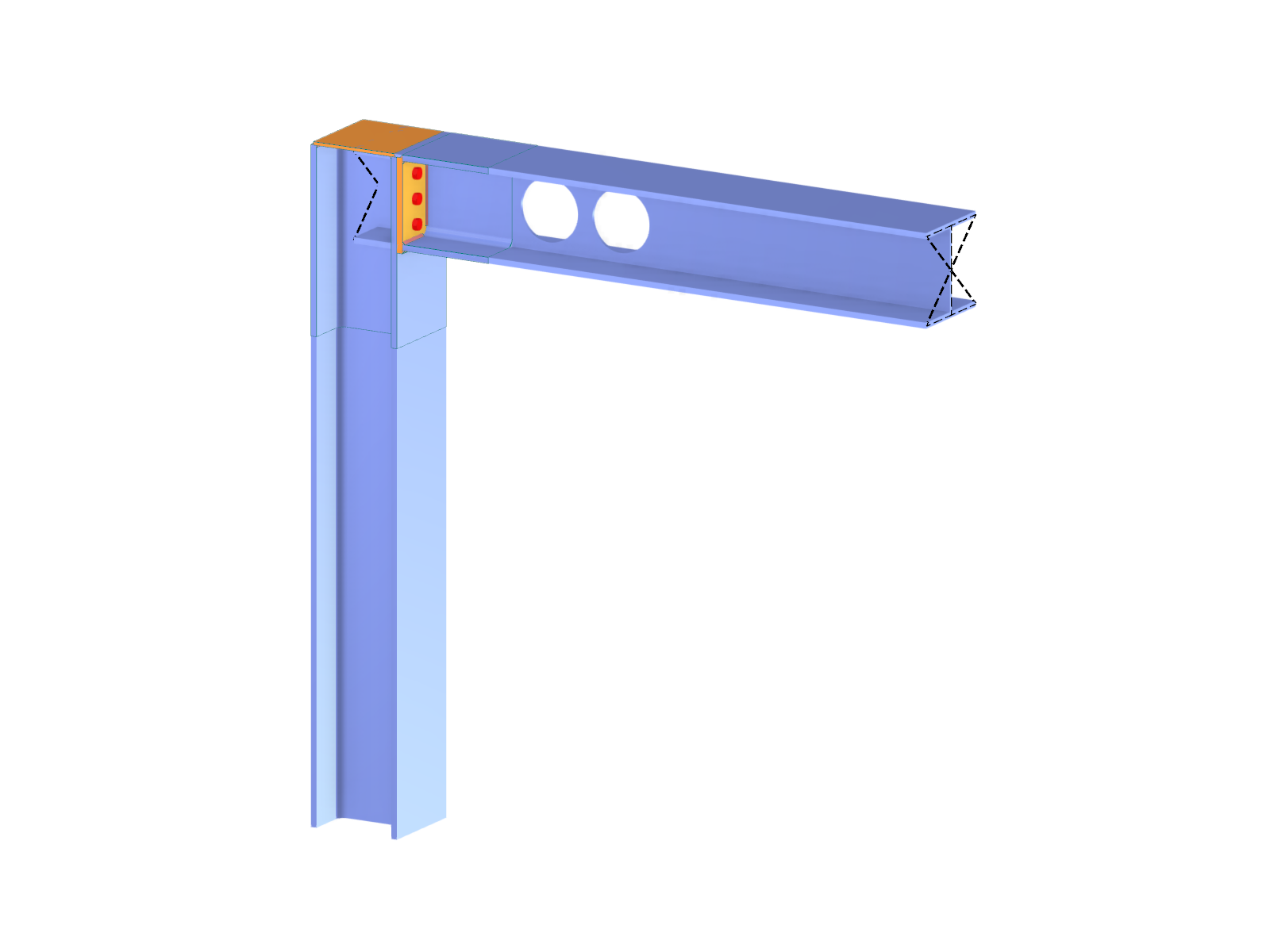

Das Modell zeigt eine biegesteife Rahmenecke mit dem Stabtyp Flächenmodell, der Verbindungsdetails präzise abbildet.
  • Description
  • Reviews (0)

The rigid frame joint in this model is designed with the '"Surface model" member type. Such a configuration allows for a precise display of the stiffness properties of a frame joint in structural analyses. Surface models are essential for the analysis of complex structures in civil engineering as they provide detailed insights into the behavior under loads.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Rigid Frame Joint with Surface Model

Anzahl Knoten 25
Anzahl Linien 40
Anzahl Stäbe 24
Anzahl Flächen 5
Anzahl Volumenkörper 0
Anzahl Lastfälle 1
Anzahl Lastkombinationen 1
Anzahl Ergebniskombinationen 0
Gesamtgewicht 0.685 t
Abmessungen (metrisch) 2.000 x 2.141 x 0.300 m
Abmessungen (imperial) 6.56 x 7.02 x 0.98 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
