Parameterization of cross laminated timber building, including loads and spans.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |

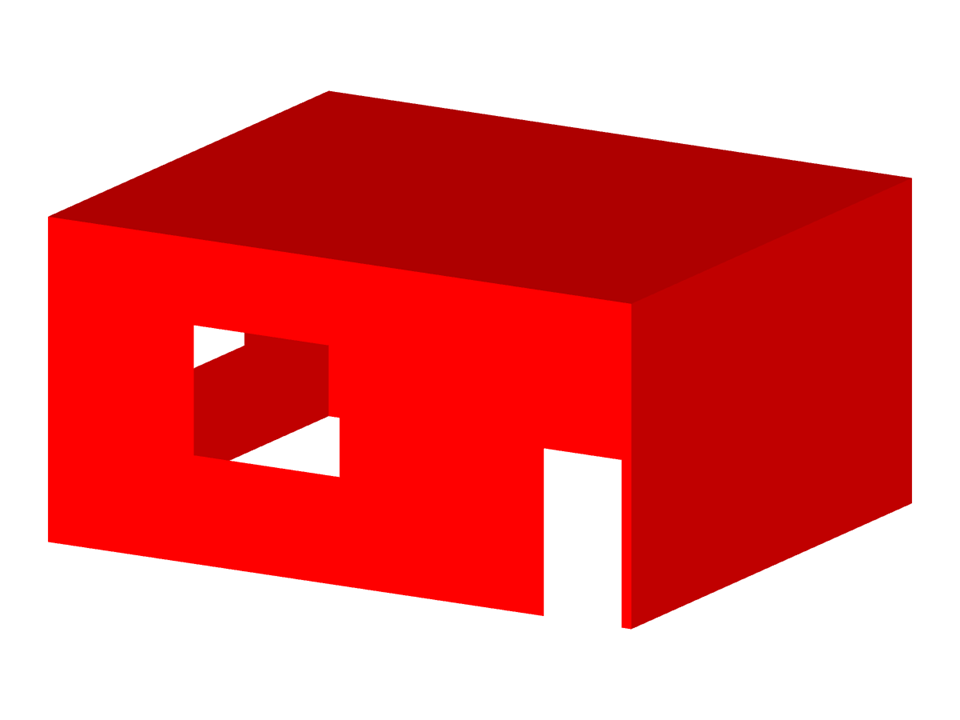

CLT Building
Block parameters editable dynamically | |
Number of Nodes | 21 |
Number of Lines | 25 |
Number of Surfaces | 5 |
Dimensions (Metric) | 6.000 x 5.000 x 3.000 m |
Dimensions (Imperial) | 19.69 x 16.4 x 9.84 feet |
Program Version | 5.27.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
In the material library of RFEM, you can find plywood materials according to the US and Canadian standards ANSI/APA PRG 510 Plywood (USA/CAN).
For the fire resistance design of timber surfaces, you can display a charring diagram depending on the time of fire exposure.
It is also possible to print this charring diagram into the printout report.
When generating shear walls and deep beams, you can assign not only surfaces and cells, but also members.
In RFEM, the oriented strand board (OSB) material is available for the USA and Canada. The material parameters are taken from the "Panel Design Specification manual".
