Question

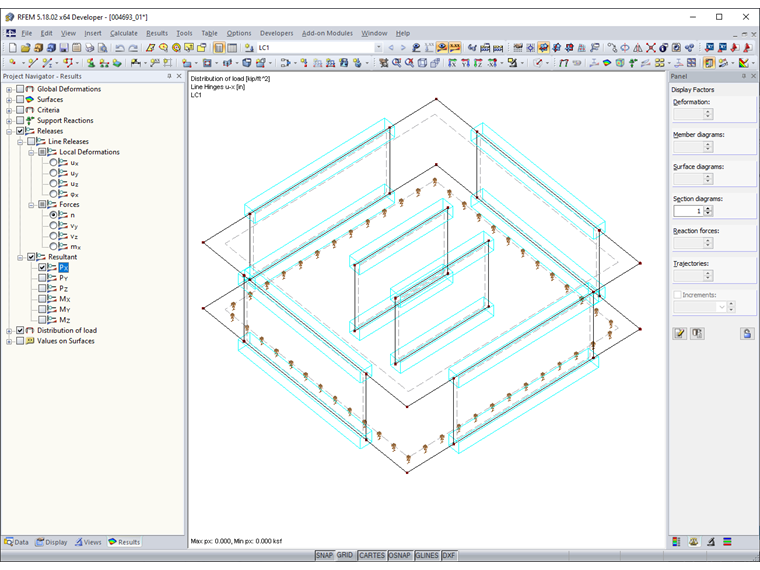

For line releases, I obtain the resultants in the horizontal direction, which I cannot understand.
Answer:
Generally, the resultants in the horizontal direction are obtained if the respective component is not released and is based on a non-double symmetric ground plan.
