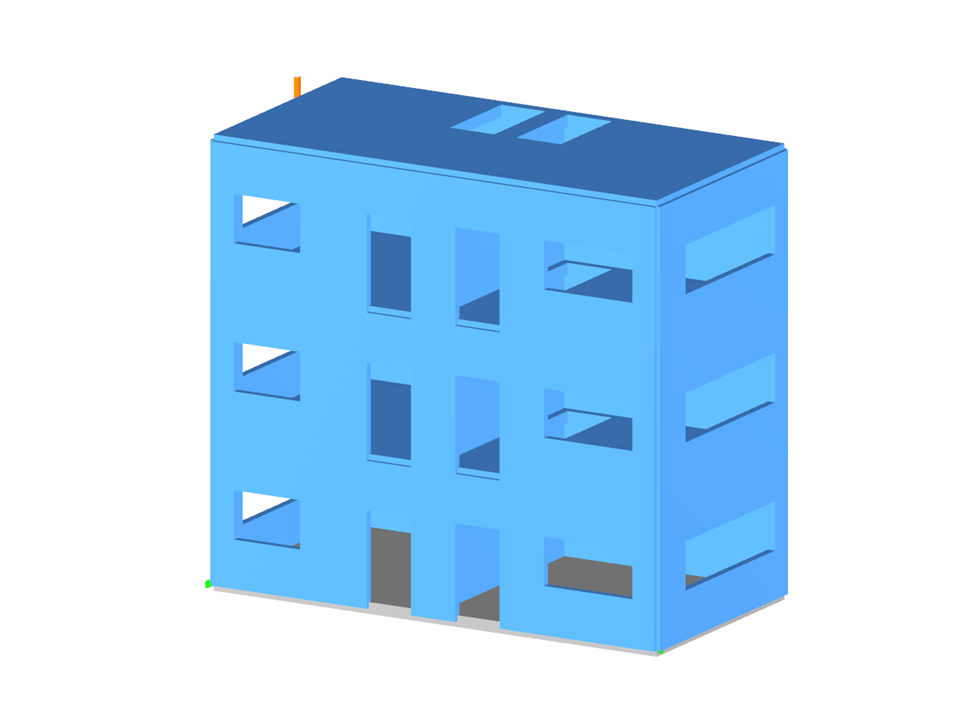

The model visualizes a cross-laminated timber building with integrated, detailed surface calculations and earthquake-specific structural loads. The supporting timber elements in the cross-laminated timber structure are precisely displayed, allowing for a realistic anharmonization of form and feature. The analysis supports engineers in evaluating earthquake resistance and optimizing structural details. In addition, the graphical display illustrates a modern timber construction method with clearly defined structural elements and connection details.
Earthquake Simulation on Cross-Laminated Timber Building
| Number of Nodes | 149 |
| Number of Lines | 194 |
| Number of Members | 1 |
| Number of Surfaces | 40 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 4 |
| Total Weight | 66.787 t |
| Dimensions (Metric) | 11.215 x 5.215 x 9.215 m |
| Dimensions (Imperial) | 36.79 x 17.11 x 30.23 feet |
| Program Version | 5.21.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
