Additionally, the complete prefabrication of the CLT panels reduced the assembly time to only 6 weeks. Thermal bridging was also reduced, which increased the moisture control of the panels to ensure an optimal indoor climate.
Dlubal customers EGOIN and Estudi M103 SLP worked together under the direction of Blazquez Guanter SLP to bring out the very best in the design process. For this purpose, both RFEM software and the RF-LAMINATE add-on module were used to consider the orthotropic stiffness and strength within the whole structural analysis model during the material design. CLT has the capacity to withstand bidirectional loads, which help to increase the stiffness compared to a uniaxial structural system.
In RFEM, line hinges based on actual connection stiffness of the slab, including nonlinear behavior, can be considered in a simple way. The line force diagrams were also produced in RFEM for further consideration in the RF-LIMITS add-on module when designing the connections. The RF-DYNAM Pro add-on module was utilized to calculate the natural vibrations and to perform a modal response spectrum analysis according to the Spanish standard NCSE-02.
Structural Design
Blazquez Guanter SLP
Estudi M103 SLP
EGOIN
egoin.com

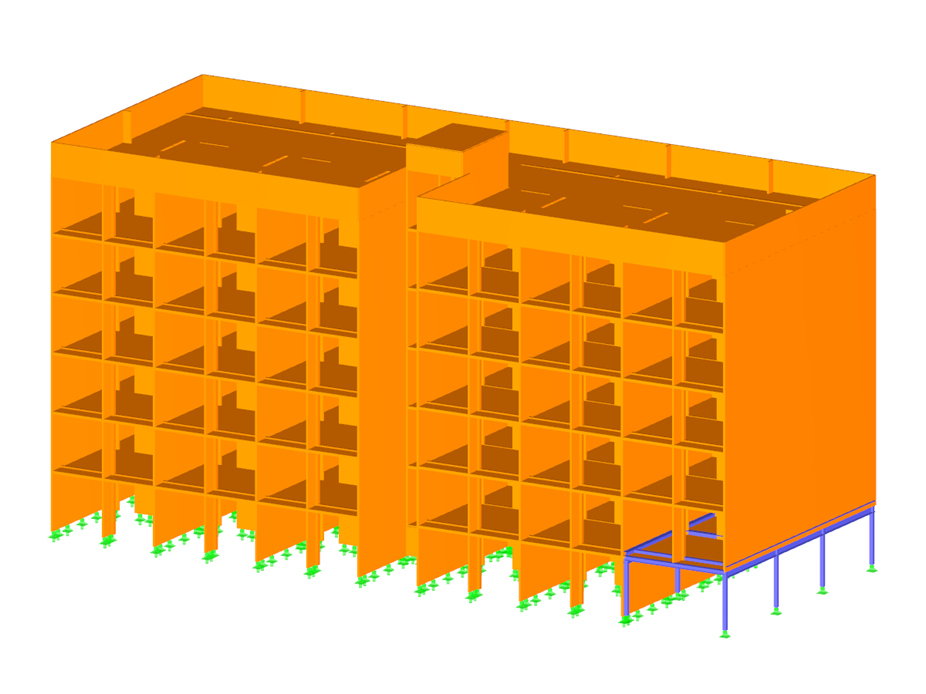

Residential Building 3D Model in RFEM (© Egoin)
CLT Residential Building
Number of Nodes | 2237 |
Number of Lines | 3428 |
Number of Members | 383 |
Number of Surfaces | 594 |
Number of Load Cases | 8 |
Number of Result Combinations | 182 |
Total Weight | 495.116 tons |
Dimensions (Metric) | 39.408 x 15.390 x 21.725 m |
Dimensions (Imperial) | 129.29 x 50.49 x 71.28 feet |
Program Version | 5.23.01 |
