Indermühle Bauingenieure from the Swiss town of Thun was responsible for the timber engineering during the project phase, including from the preliminary project to the supervision of the final design. The firm also completed the 3D project planning on behalf of the timber construction company. RFEM was utilized for the structural analysis.
Investor
Residential municipality of Sutz-Lattrigen, Switzerland
www.sutz-lattrigen.ch
Architectural Design
Bauzeit Architekten, Biel, Switzerland
www.bauzeit.com
Lanz Architects, Sutz-Lattrigen, Switzerland
www.lanzarchitekten.ch
Timber Structural Analysis
Indermühle Bauingenieure, Thun, Switzerland
www.ib.ch.
Reinforced Concrete Design
Emch + Berger AG, Bern, Switzerland
www.emchberger.ch
Timber Structure
Wenger Holzbau AG, Steffisburg, Switzerland
www.wengerholzbauag.ch

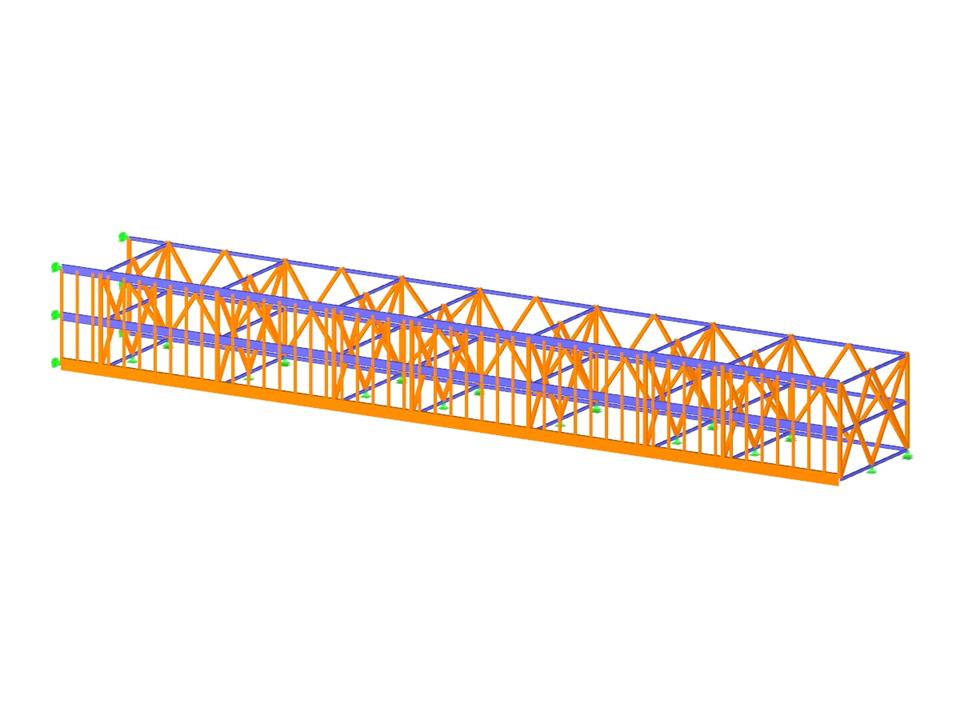

3D model (© Indermühle Bauingenieure)
Truss Structure
Number of Nodes | 388 |
Number of Lines | 652 |
Number of Members | 652 |
Number of Load Cases | 5 |
Number of Result Combinations | 6 |
Total Weight | 59.951 tons |
Dimensions (Metric) | 58.122 x 8.822 x 6.581 m |
Dimensions (Imperial) | 190.69 x 28.94 x 21.59 feet |
Program Version | 5.20.02 |
