Download the model of a steel hall here, and open it with the structural finite element analysis software RFEM.
This model is used in the free webinar "Stability Analysis and Consideration of Torsional Warping (7 Degrees of Freedom) in RFEM 6" from March 17, 2022 (in English; March 15, 2022 in German).
Model Used in

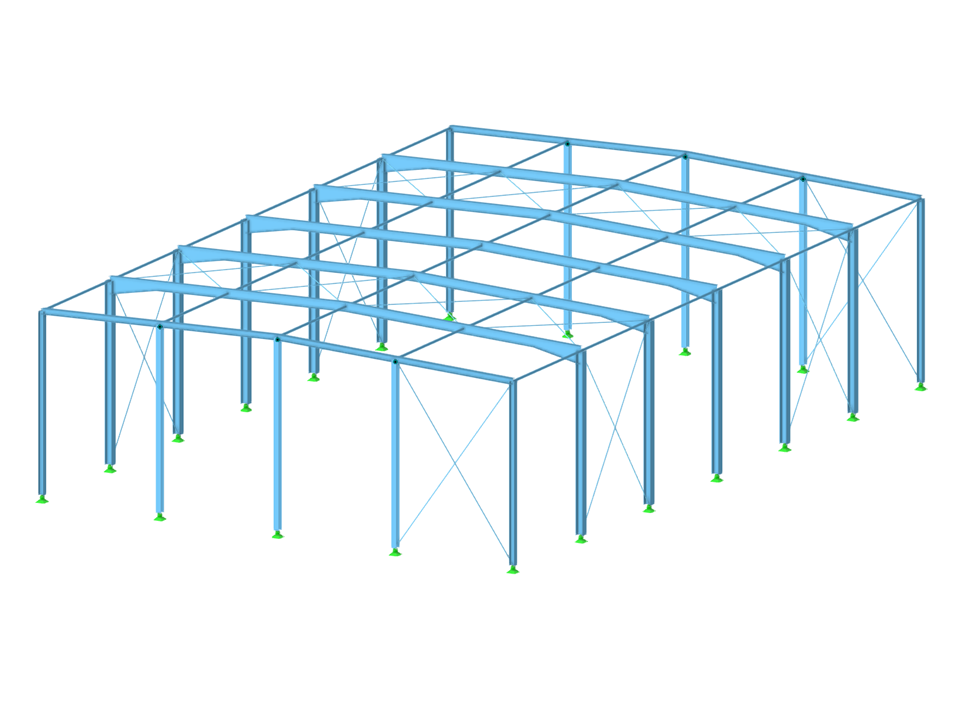

Steel Hall
| Number of Nodes | 65 |
| Number of Lines | 116 |
| Number of Members | 116 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 10 |
| Number of Result Combinations | 0 |
| Total Weight | 17.982 tons |
| Dimensions (Metric) | 20.000 x 7.349 x 30.000 m |
| Dimensions (Imperial) | 65.62 x 24.11 x 98.43 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
