Model 005477 | Timber-Concrete Composite Beam with Line Releases

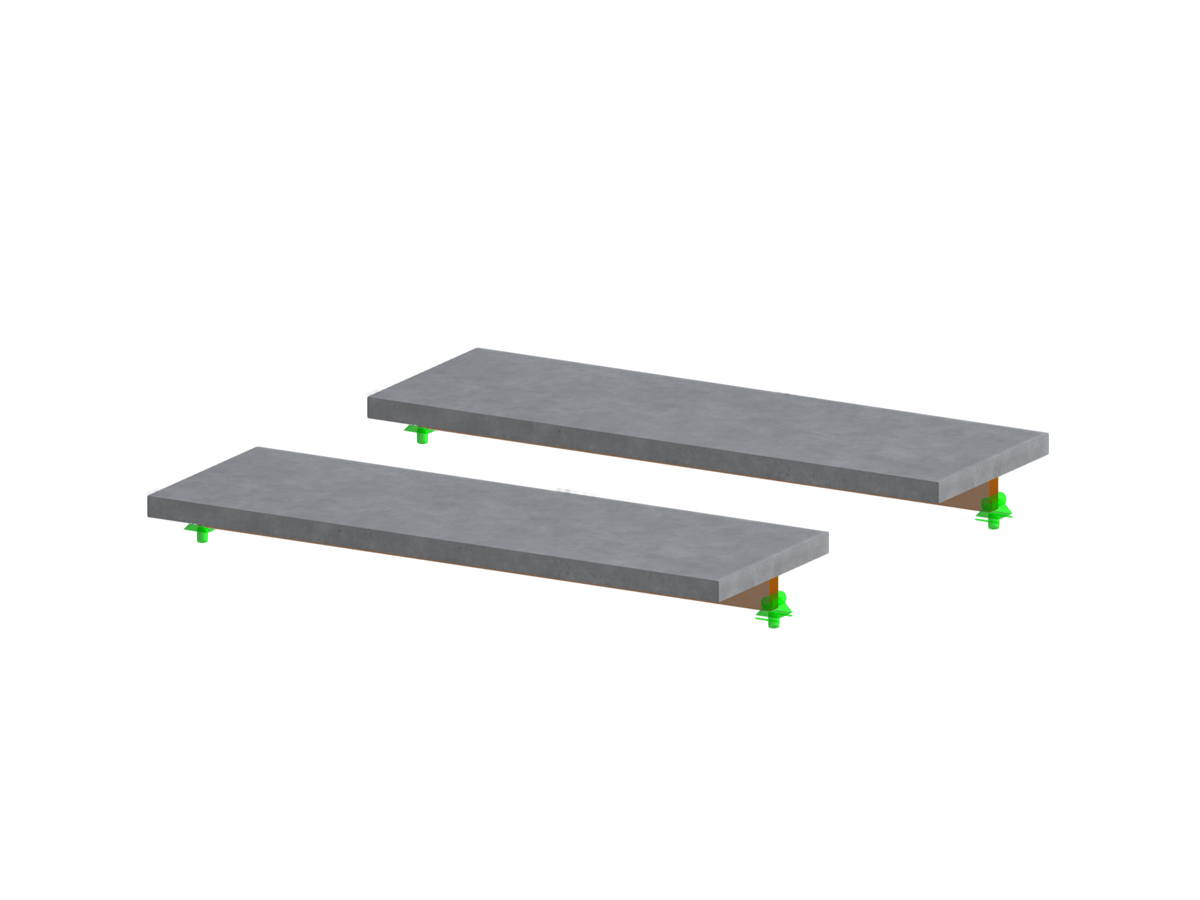

Model 005477 | Timber-Concrete Composite Beam with Rigid Couplings and Line Hinges
The image shows a timber-concrete composite beam modeled with line releases and rigid releases. Line releases are integrated at the connection points to optimize load transfer and freedom of movement. This modeling allows for a precise analysis of the structural interactions between timber and concrete, which is advantageous in the Dlubal software for calculating composite structures.
Used in
3D Model
