Download the model of a steel column with a base plate and a surface contact and open it with the FEA software RFEM.
This model is used in the free webinar "New Features in RFEM 6 and RSTAB 9" on October 15, 2021 (October 13, 2021 in German).
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |

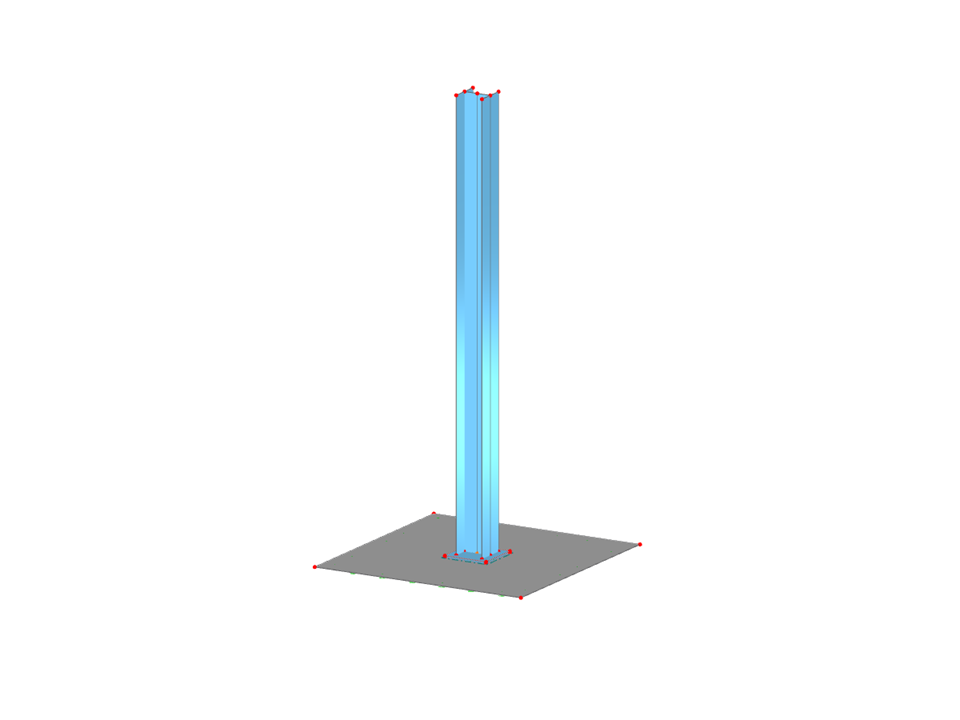

Steel Column with Base Plate and Surface Contact
Number of Nodes | 26 |
Number of Lines | 29 |
Number of Members | 0 |
Number of Surfaces | 8 |
Number of Solids | 0 |
Number of Load Cases | 1 |
Number of Load Combinations | 4 |
Number of Result Combinations | 0 |
Total Weight | 0.774 tons |
Dimensions (Metric) | 1.000 x 2.010 x 1.000 m |
Dimensions (Imperial) | 3.28 x 6.59 x 3.28 feet |
