I am designing an asymmetric cross-section and I got the message: "Non-designable: ER051 Moment about z-axis on asymmetric cross-section, taper or set of members". Why?
Answer:
The reason for this warning is that asymmetric cross-sections cannot be designed using the methods mentioned in 6.3.3 of EN&nbso;1993‑1‑1 or General Method according to 6.3.4 of EN 1993‑1‑1.
You can perform the stability analysis as cross-section design according to the second-order analysis, which is possible using the add-on modules FE‑LTB or STEEL Warping Torsion.
Model Used in

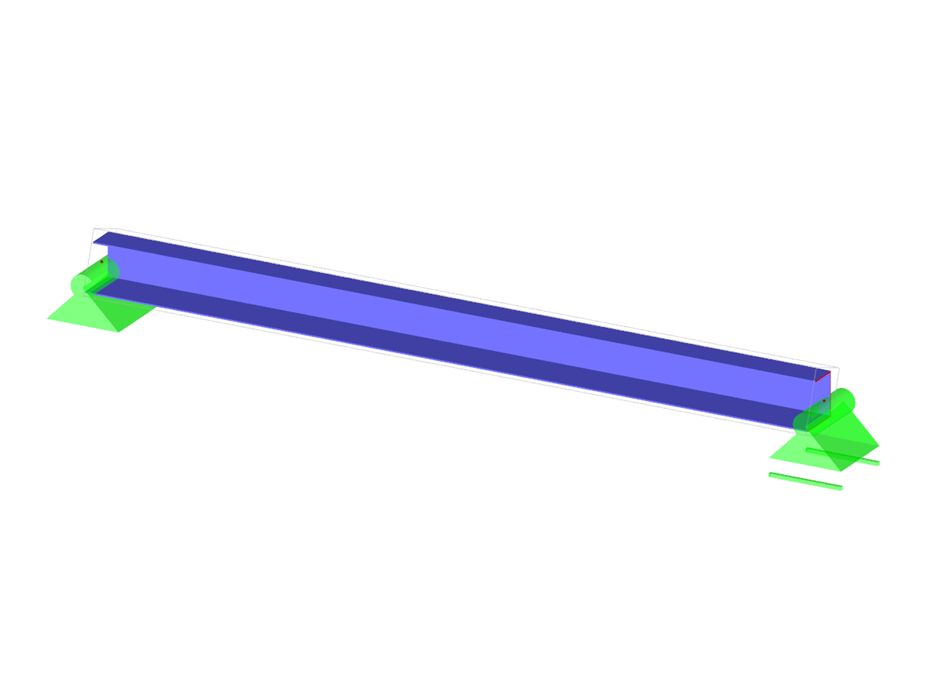

Single-Span Beam with Asymmetric Cross-Section
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.306 tons |
| Dimensions (Metric) | 5.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
