In the course of the Elbe-Havel Canal expansion, the Güsen road bridge was replaced by a new construction at the same location. This new construction was necessary because the clear width and height of the existing bridge were not sufficient for the next development of the waterway.
In order to maintain an important road connection over the canal, the construction of a temporary bridge was required.
The company grbv Ingenieure im Bauwesen GmbH & Co. KG from Hanover, Germany, was responsible for the planning and structural design of the new and the temporary bridge as well as for the demolition of the existing bridge. For the static calculations, grbv used a.o. the framework program RSTAB.
Investor
Waterways and Shipping Directorate East, Waterways
Construction Authority of Magdeburg
www.wsv.de.

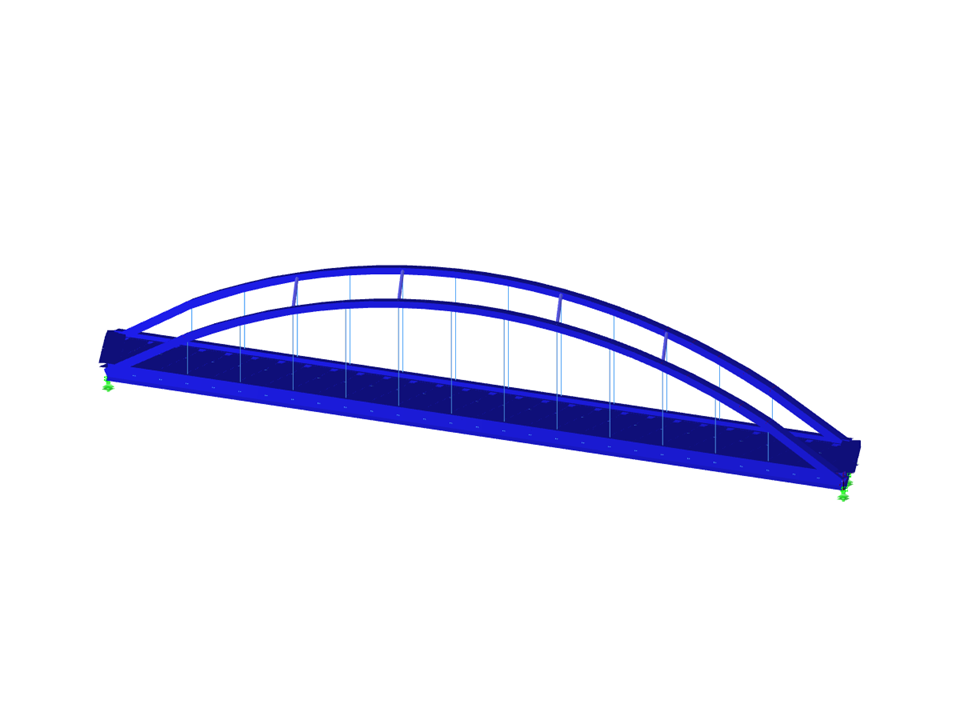

3D model (© grbv)
In order to maintain an important road connection over the canal, the construction of a temporary bridge was required.
The company grbv Ingenieure im Bauwesen GmbH & Co. KG from Hanover, Germany, was responsible for the planning and structural design of the new and the temporary bridge as well as for the demolition of the existing bridge. For the static calculations, grbv used a.o. the framework program RSTAB.
Investor
Waterways and Shipping Directorate East, Waterways
Construction Authority of Magdeburg
www.wsv.de.
3D model (© grbv)
Model Used in
Road Bridge
No Download Possible
Customer Project / View Only
| Number of Nodes | 228 |
| Number of Members | 687 |
| Number of Load Cases | 153 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 39 |
| Total Weight | 553.655 tons |
| Dimensions (Metric) | 100.382 x 13.350 x 14.700 m |
| Dimensions (Imperial) | 329.34 x 43.8 x 48.23 feet |
| Program Version | 8.11.01 |
