Import of Effective Lengths from RF-STABILITY or RSBUCK into RF-/TIMBER Pro

Is it possible to import effective lengths from RF‑STABILITY or RSBUCK in RF‑/TIMBER Pro?

Answer:

Yes, it is.

First, RF‑STABILITY (or RSBUCK in RSTAB 8) can be used to determine the effective lengths for a structural system and certain loading.

FAQ|004113
EN-US | Flag FAQ
FAQ 004113 | Is it possible to import effective lengths from RF‑STABILITY or RSBUCK in RF‑/TIMBER Pro?

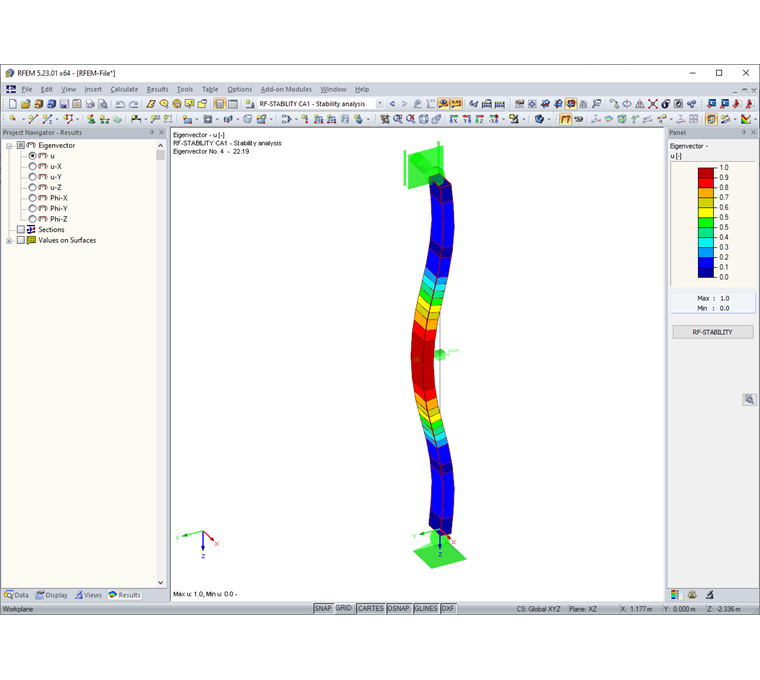

Mode Shape Determined with RF-STABILITY
Mode Shape Determined with RF-STABILITY

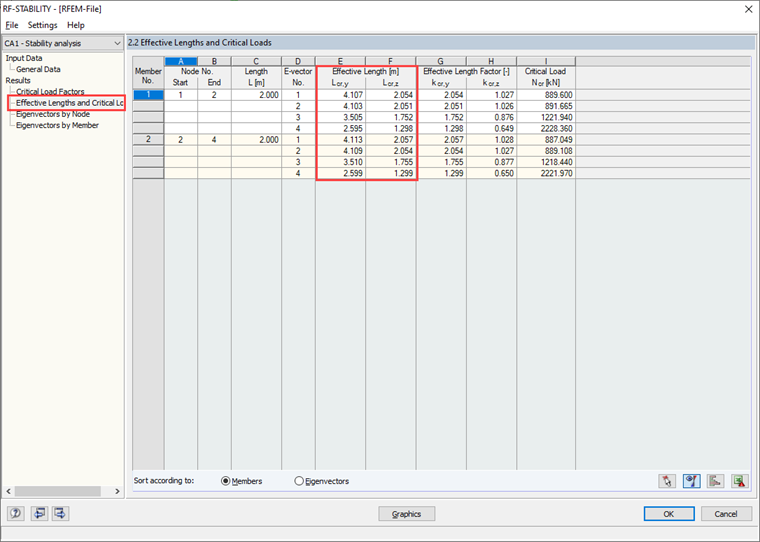

Effective Lengths in RF-STABILITY
Effective Lengths in RF-STABILITY

They can then be imported in the "Effective Lengths" dialog box in RF‑/TIMBER Pro.

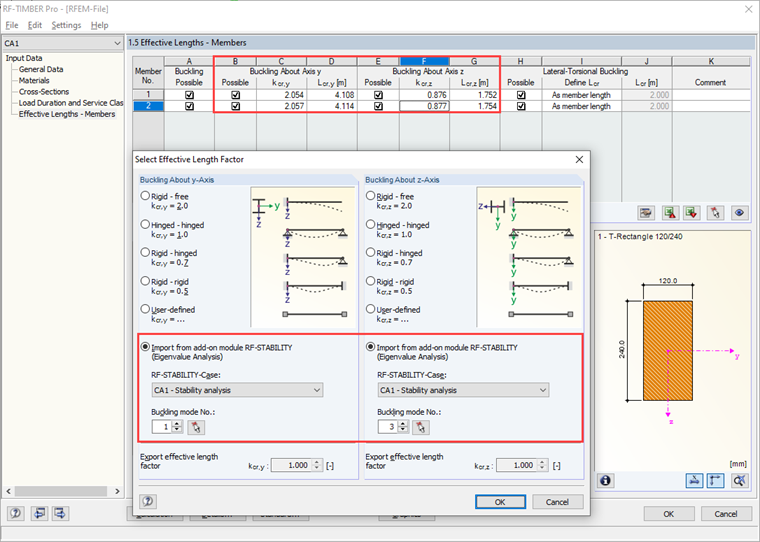

RF-/TIMBER Pro with Dialog Box for Importing Determined Effective Lengths
RF-/TIMBER Pro with Dialog Box for Importing Determined Effective Lengths
