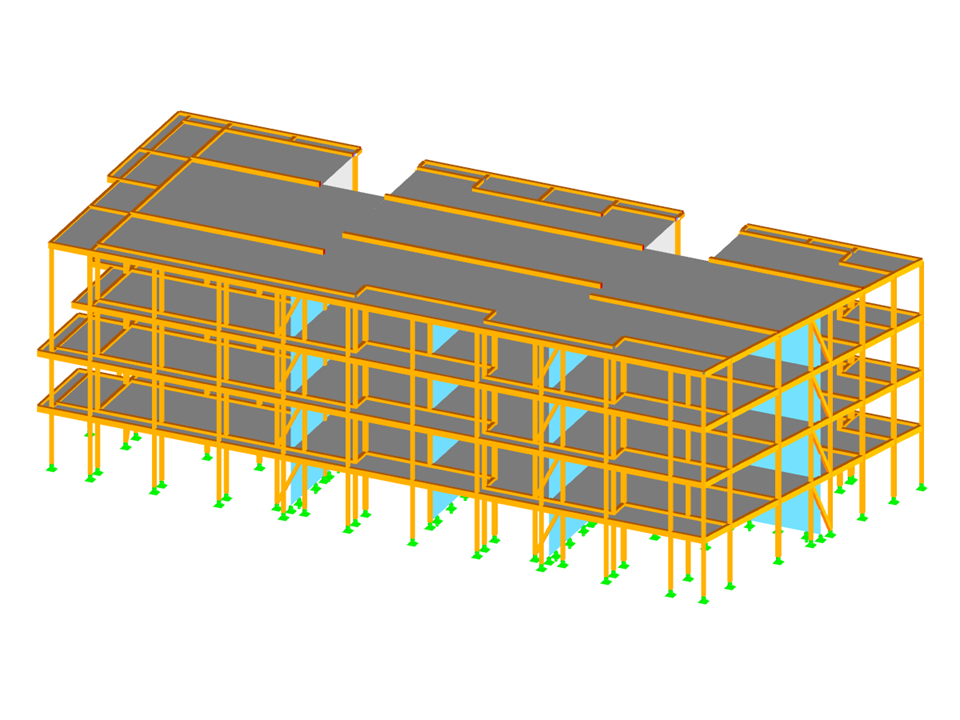

Reversible R+4 Composite Timber/Concrete Building
Number of Nodes | 574 |
Number of Lines | 1063 |
Number of Members | 827 |
Number of Surfaces | 205 |
Number of Load Cases | 7 |
Number of Load Combinations | 159 |
Number of Result Combinations | 4 |
Total Weight | 531.828 tons |
Dimensions (Metric) | 40.424 x 16.681 x 12.150 m |
Dimensions (Imperial) | 132.62 x 54.73 x 39.86 feet |
Program Version | 5.34.02 |
![Database of Foundation Templates](/en/webimage/010191/3063141/01-en.png?mw=512&hash=65e98cfe859ce35a3e3e9da47a0ef9335401520e)
![Separate Load Entry for Structure or Foundation Design](/en/webimage/010211/3062951/01-en.png?mw=512&hash=65e98cfe859ce35a3e3e9da47a0ef9335401520e)
![Variants of Display of Result Values](/en/webimage/010258/3042968/01-en.png?mw=512&hash=65e98cfe859ce35a3e3e9da47a0ef9335401520e)
![Define Member Perpendicular to Another Member](/en/webimage/010290/3040684/EN_01_Member_perpendicularly_to_member.png?mw=512&hash=fb517e04eb5fe1fb146c904cbadb016e6daf4e4e)
![Feature 002828 | Fire Design of Slabs and Walls According to Simplified Table Method](/en/webimage/050837/3925042/50837.png?mw=512&hash=b06639a36ab8b62ab6d08e08552a5ec274469a37)
In Concrete Design Add-on for RFEM 6 / RSTAB 9 you can perform the fire design of reinforced concrete slabs and walls according to the simplified table method (EN 1992‑1‑2, Section 5.4.2 and Table 5.8 and 5.9).
![Feature 002826 | Punching Shear Reinforcement](/en/webimage/050658/3936123/50658.png?mw=512&hash=ae20d4ca78cdf203a2c2d3ccbb7daa0f324da77a)
In the Concrete Design add-on, you have the option to define an existing vertically oriented punching shear reinforcement. This is then taken into account in the punching shear design.
![Feature 002824 | OSB Material for USA and Canada](/en/webimage/050460/3955503/2024-06-28_10-42-39.png?mw=512&hash=5ec86ff7955d8c9a50e53301df3f21fceda009a5)
In RFEM, the oriented strand board (OSB) material is available for the USA and Canada. The material parameters are taken from the "Panel Design Specification manual".
![Feature 002801 | Punching Shear Design for All Section Shapes](/en/webimage/048276/3861250/2024-05-01_15-05-25.png?mw=512&hash=7732dd7fd2a19d53a9f6f77a35896a7c3676cff2)
Do you have individual column sections and angled wall geometries, and need punching shear design for them?
No problem. In RFEM 6, you can perform punching shear design not only for rectangular and circular sections, but for any cross-section shape.
