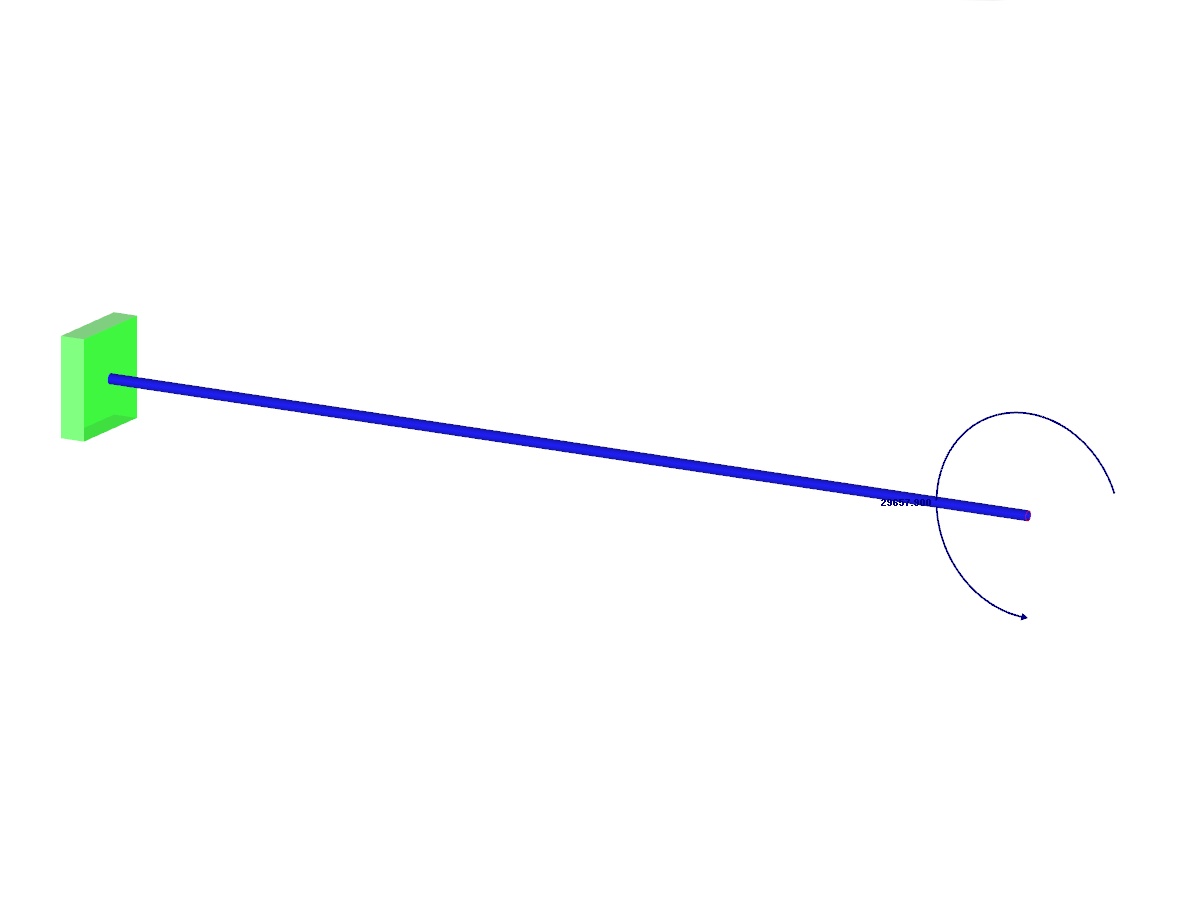

Determine the bending moment which acting at the free end of the cantilever will bend the member to a circle shape. Neglecting a beam's self weight, assuming large deformation theory and loading the cantilever with the moment, determine its maximum deflections.
Verification Example 000043 | 1
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.015 tons |
| Dimensions (Metric) | 4.250 x 0.500 x 0.500 m |
| Dimensions (Imperial) | 13.94 x 1.64 x 1.64 feet |
| Program Version | 5.05.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
