In the Stress-Strain Analysis add-on, you can define a component-dependent limit stress cycle and consider it in the design.
Specification of Component-Dependent Limit Stress Cycle
Do you have any questions?
![Feature 002842 | Sign-Dependent Stress Analysis](/en/webimage/051240/3953337/1.png?mw=512&hash=9d7f6c198b6d4ae6ee8f2fa8bca75f85579e14c9)
In the Stress-Strain Analysis add-on, you can use the option to specify sign-dependent limit stresses by stress component.

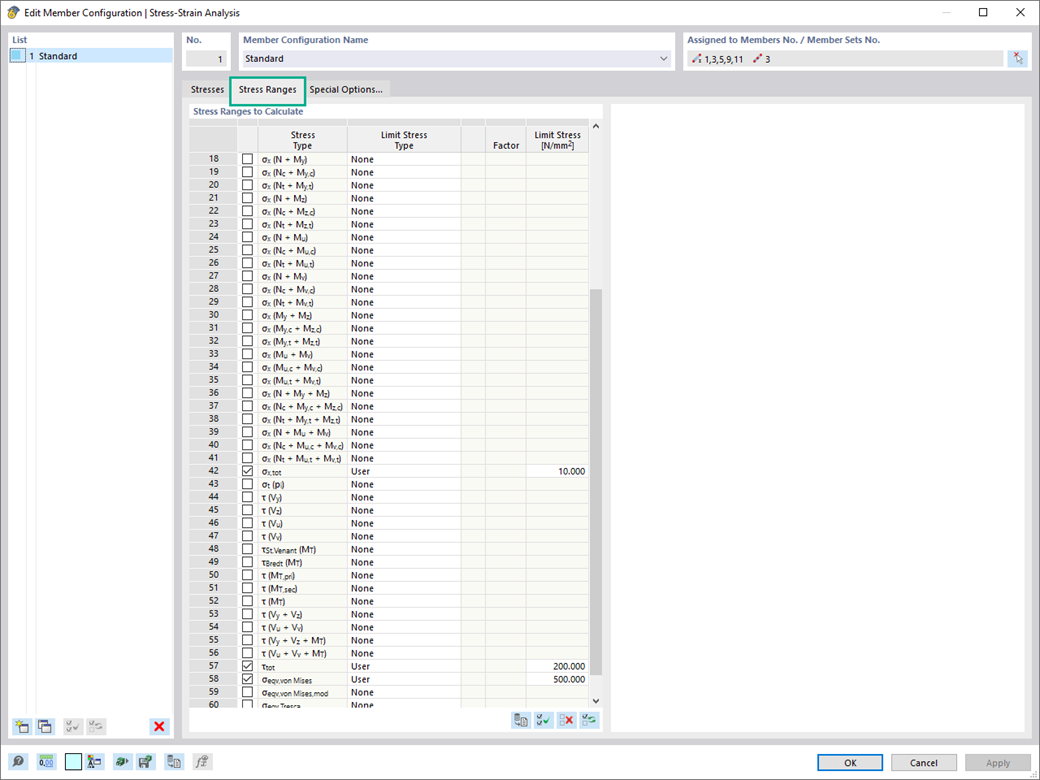

![Feature 002829 | Specifying Component-Dependent Limit Stress Cycle](/en/webimage/050851/3925068/50851.png?mw=512&hash=12d40dd60ef9c2dcc110c168ac05c4881935c4ab)
In the Stress-Strain Analysis add-on, you can define a component-dependent limit stress cycle and consider it in the design.
![Output of Stresses, Graphically and Tabularly](/en/webimage/022955/3130494/Ausgabe_der_Spannungen,_grafisch_und_tabellarisch_ENG.png?mw=512&hash=d2715b10547f913d3a3bfbdf03b5376362cc421a)
Compared to the RF‑/STEEL add-on module (RFEM 5 / RSTAB 8), the following new features have been added to the Stress-Strain Analysis add-on for RFEM 6 / RSTAB 9:
- Treatment of members, surfaces, solids, welds (line welded joints between two and three surfaces with subsequent stress design)
- Output of stresses, stress ratios, stress ranges, and strains
- Limit stress depending on the assigned material or a user-defined input
- Individual specification of the results to be calculated through freely assignable setting types
- Non-modal result details with prepared formula display and additional result display on the cross-section level of members
- Output of the design check formulas used
![Stress-Strain Analysis for RFEM 6](/en/webimage/043484/3584990/Screenshot_09-04-2023_11.09.44.png?mw=512&hash=d55a481753a454319308a25936b0b811c243097d)
- General stress analysis
- Automatic import of internal forces from RFEM/RSTAB
- Graphical and numerical output of stresses, strains, clearance, and design ratios fully integrated in RFEM/RSTAB
- User-defined specification of the limit stress
- Summary of similar structural components for the design
- Wide range of customization options for graphical output
- Clearly arranged result tables for a quick overview after the design
- Simple traceability of the results due to the complete documentation of the calculation method including all formulas
- High productivity due to the minimal amount of input data required
- Flexibility due to detailed setting options for basis and extent of calculations
- Gray Zone Display for Unimportant Value Ranges: Product Feature "Stress-Strain Analysis with Gray Zone Display"
