RF-CONCRETE Deflect | Features

  • Deformation analyses of reinforced concrete surfaces without or with cracks (state II) by applying the approximation method (for example, deformation analysis according to EN 1992-1-1, Cl. 7.4.3 )
  • Tension stiffening of concrete applied between cracks
  • Optional consideration of creep and shrinkage
  • Graphical representation of results integrated in RFEM; for example, deformation or sag of a flat slab
  • Numerical results clearly arranged in tables and graphical display of the results in the model
  • Complete integration of results in the RFEM printout report

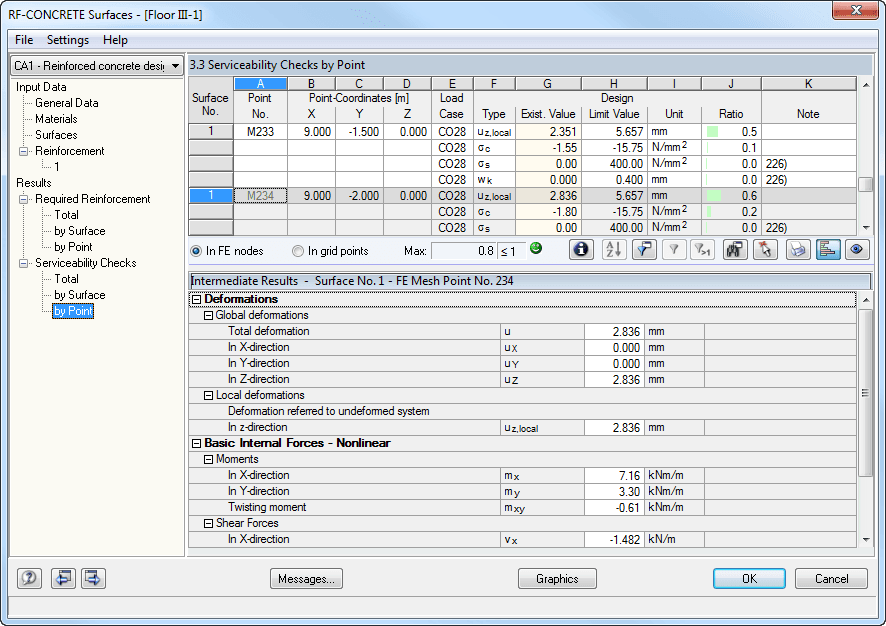

Serviceability Limit State Design Point by Point
