In the default setting, the cross-section class for each member and load case is determined automatically in the design modules. In the input window of the cross sections, however, the user can also specify the cross-section class manually, for example if local buckling is excluded by the design.

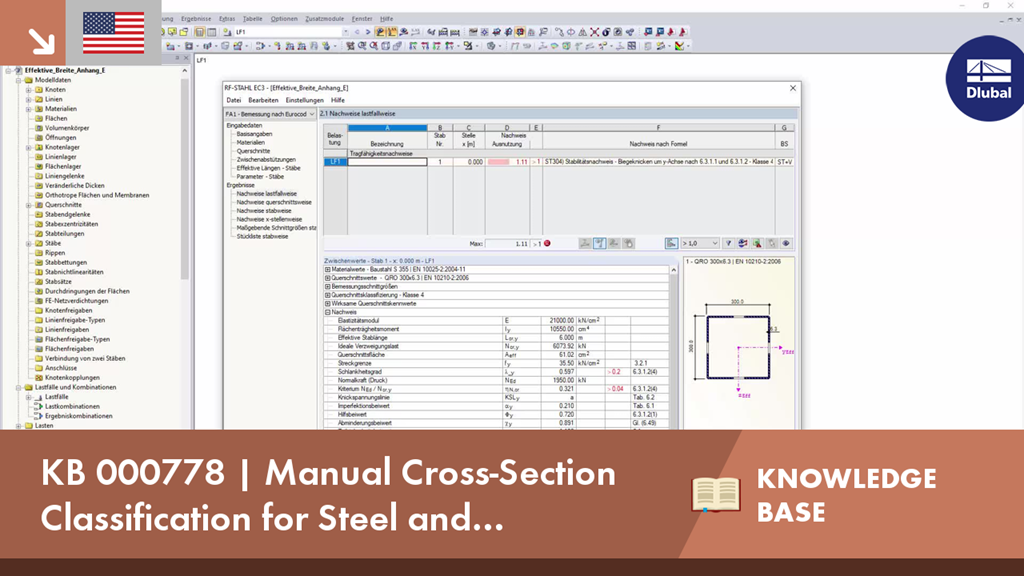

KB 000778 | Manual Cross-Section Classification for Steel and Aluminum Design According to Eurocode
Links
Do you have any questions?
![Manual Selection of Cross-Section Class](/en/webimage/010346/3014464/1_Manual_Definition_of_Cross-Section_Class.png?mw=512&hash=04f5243151ba895864e6d51f4e60d40867eaad56)
In the default setting, the cross-section class for each member and load case is determined automatically in the design modules. In the input window of the cross sections, however, the user can also specify the cross-section class manually; for example, if local buckling is excluded by the design.
![Basic Types of Cross-Section Parts](/en/webimage/014717/2944998/01-en.png?mw=512&hash=65e98cfe859ce35a3e3e9da47a0ef9335401520e)
The classification of cross-sections is intended to determine the limits of resistance and rotational capacity due to local buckling of cross-section parts. In EN 1999‑1‑1, 6.1.4.2 (1), four classes are defined.
![Cross-Section Classes](/en/webimage/009823/2420607/01-en-png-png.png?mw=512&hash=6ca63b32e8ca5da057de21c4f204d41103e6fe20)
The RF-/STEEL EC3 add‑on module performs a detailed cross‑section classification on each design before the design is carried out. Thus, the susceptibility to local buckling of all cross-section parts is evaluated. The defined cross-section class has an effect on the resistance and rotational capacity determination.
![Setting Section from Library](/en/webimage/009751/2420187/01-en-png-png.png?mw=512&hash=6ca63b32e8ca5da057de21c4f204d41103e6fe20)
SHAPE‑THIN cross‑section properties software determines the effective section properties of thin‑walled cross‑sections according to Eurocode 3 and Eurocode 9. Alternatively, the program allows plastic design of general cross‑sections according to the Simplex Method. In this process, plastic cross-section reserves are iteratively calculated for elastically determined internal forces. The following example describes the effective cross-section properties in the notching area of a rolled I-section. Afterwards, the results are compared with the plastic analysis.
