FE Mesh of Conical Membrane

Why does the FE mesh of my conical membrane look angular after the form-finding?

Answer:

This is probably due to the size of the FE elements you have defined.

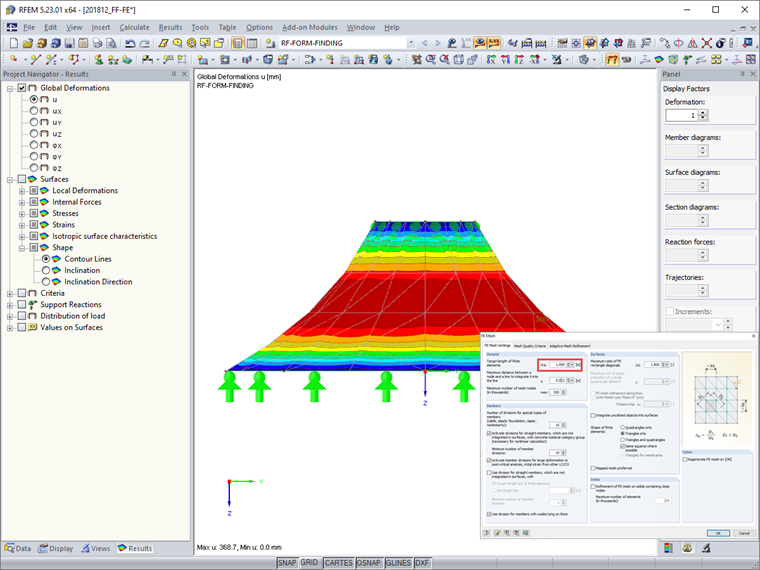

For a rough FE mesh of 1 m, the shape looks angular.

FAQ|004880
EN-US | Flag FAQ
FAQ 004880 | Why does the FE mesh of my conical membrane look angular after the form-finding?
Form-Finding FE Mesh 1 m
Form-Finding FE Mesh 1 m

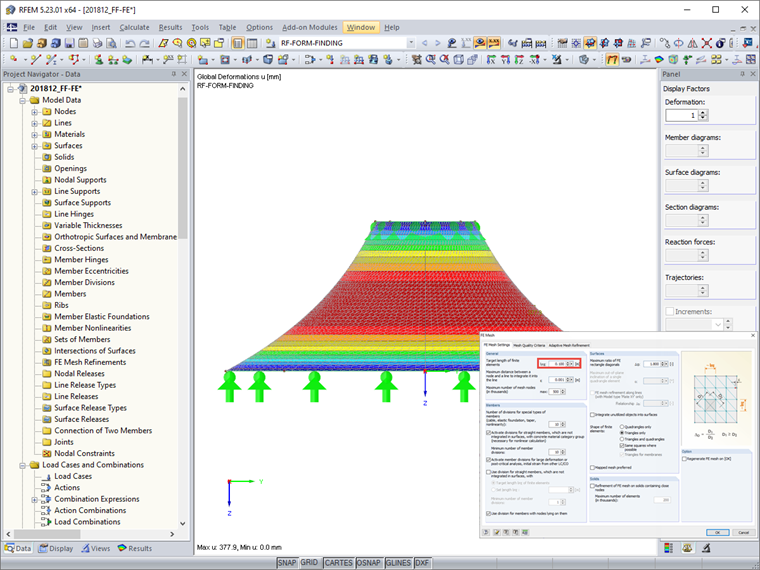

For a fine FE mesh of 0.1 m, the shape looks smoother.

Form-Finding FE Mesh 0.1 m
Form-Finding FE Mesh 0.1 m

Author

Mr. Hoffmann provides technical support to Dlubal Software customers and is responsible for the coordination of all technical inquiries and activities.

Downloads
RFEM Model File
4.13 MB
