Display of Internal Forces and Stresses on Surface Edges

How do I get the internal forces and stresses on a surface edge?


Answer:

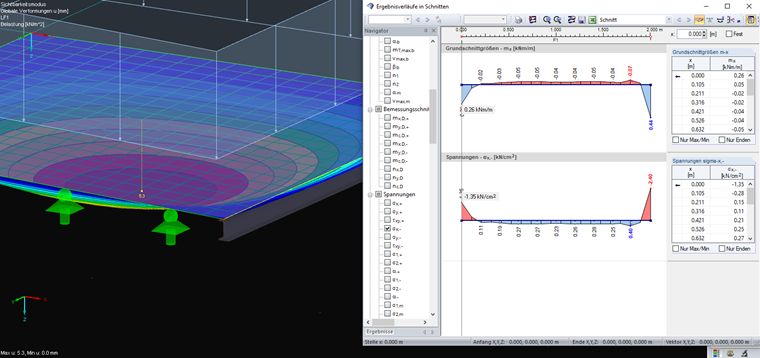

If you want to get the results of the surface edges, you can view the result diagrams on the line by right-clicking it.

If a member rests on the line, you have to hide it first. The easiest way is probably to deactivate all members in Display Navigator → Model Data.
