FAQ 005203 | Where can I activate the reduction of load cases in RFEM 6? And how does this reduction work?

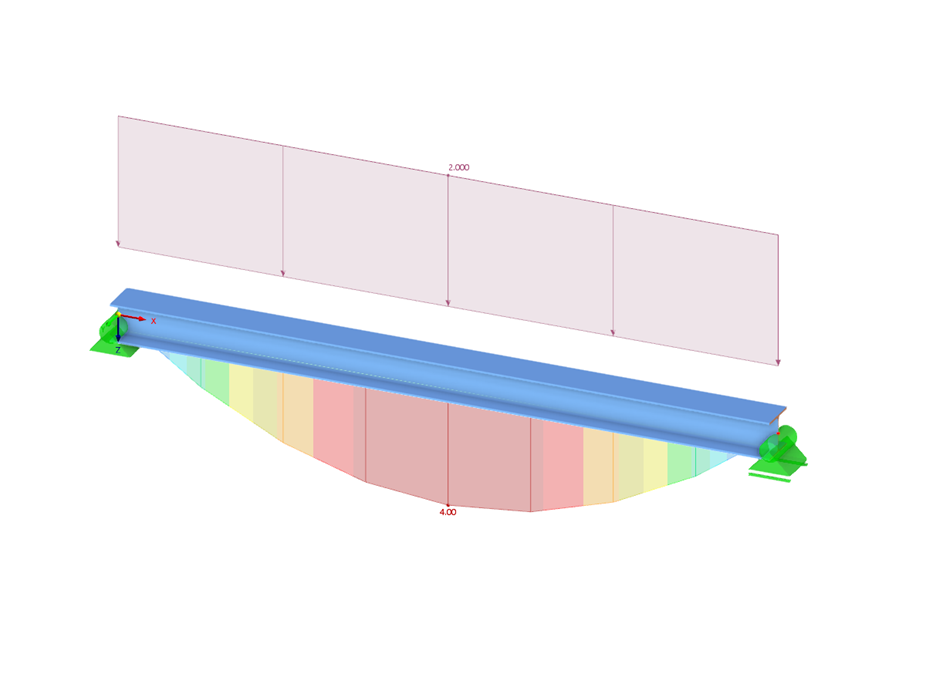

A model that shows how to reduce the number of load combinations
Model Used in
Steel Beam
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 0.241 tons |
| Dimensions (Metric) | 4,000 x 0,000 x 0,000 m |
| Dimensions (Imperial) | 13.12 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
