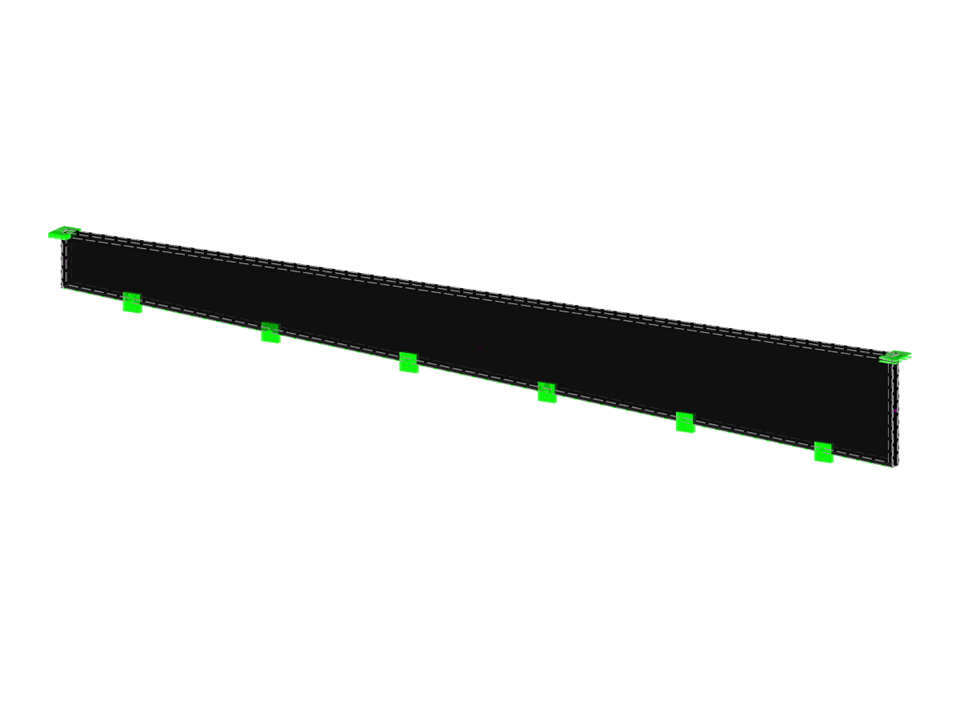

Tsai-Wu Material Model
  • Description
  • Reviews (0)

The model is based on an orthotropic, elastic-plastic material approach that allows for the calculation of solids with plastic properties in RFEM 5. The Tsai-Wu criterion is used to evaluate the material behavior, which allows for the precise simulation of complex load and deformation situations. The display graphically integrates typical design diagrams and parameters that illustrate the relationship between material properties and plastic response. The model provides a differentiated analysis of orthotropic effects in plastic-elastic behavior.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Tsai-Wu Material Model | Orthotropic Elastic-Plastic

Number of Nodes 16
Number of Lines 28
Number of Surfaces 16
Number of Solids 3
Number of Load Cases 1
Dimensions (Metric) 10.010 x 0.120 x 1.200 m
Dimensions (Imperial) 32.84 x 0.39 x 3.94 feet
Program Version 5.25.01

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
