Dome of Louvre Abu Dhabi, United Arab Emirates
  • Description
  • Reviews (0)

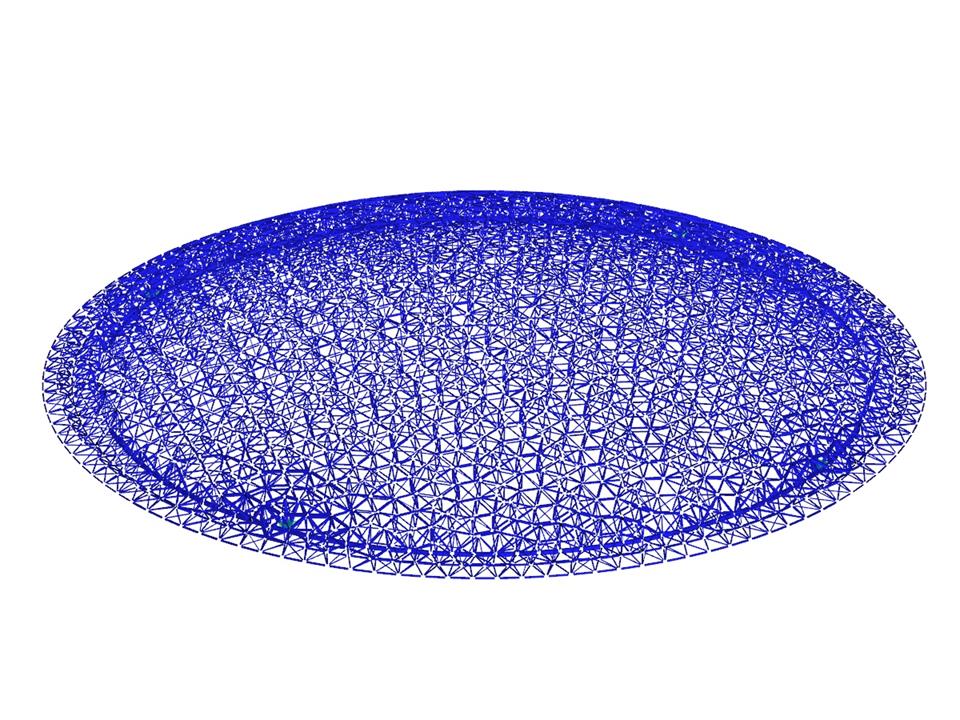

The dome of the Louvre Abu Dhabi, designed by Jean Nouvel, was designed and built by Waagner-Biro of Vienna using steel structures. The spatial model of the structure was created in RSTAB, a program for structural analysis and design. Waagner-Biro Stahlbau AG carried out the detailed design and calculations. Further information can be found on the company's website. Waagner-Biro website

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Dome Structure of Louvre Abu Dhabi

No Download Possible Customer Project / View Only
Number of Nodes 2805
Number of Members 10976
Number of Load Cases 39
Number of Load Combinations 440
Number of Result Combinations 6
Total Weight 3714.623 t
Dimensions (Metric) 178.082 x 178.082 x 25.352 m
Dimensions (Imperial) 584.26 x 584.26 x 83.18 feet
Program Version 8.01.00
